Features:

The entire machine is constructed from SUS304 stainless steel, ensuring safety, hygiene, and easy cleaning. The drive pulleys are also made of SUS304 stainless steel.

The drive pulleys are connected via a coupling, and the motor can be optionally equipped with a brake function. The saw blade tensioning device is easy to adjust, and the dual-side drive pulley design prevents the saw blade from coming off.

The spindle bearings feature a modular configuration for easy maintenance. With high-precision design, vibration damping in the main and auxiliary pulley drive system is as low as 0.01 mm, ensuring smoother high-speed cutting, reducing meat debris, and delivering optimal cutting results with minimal waste and the lowest operating costs. The machine cover is equipped with a safety switch for enhanced safety. The machine design complies with CE standards. The machine can be customized for left- or right-hand operation. It is equipped with a scale for convenient operation, and you can choose between a mobile or fixed worktable. The quick-adjustment mechanism allows for precise thickness adjustment, and the scale is user-friendly. An optional safety push rod design is available to enhance workplace safety. The lower shaft features a modular design for hassle-free maintenance.

No professional maintenance personnel are required to restore the machine to its factory default settings, making it suitable for use in various types of high-volume production facilities.

Technical Specifications:

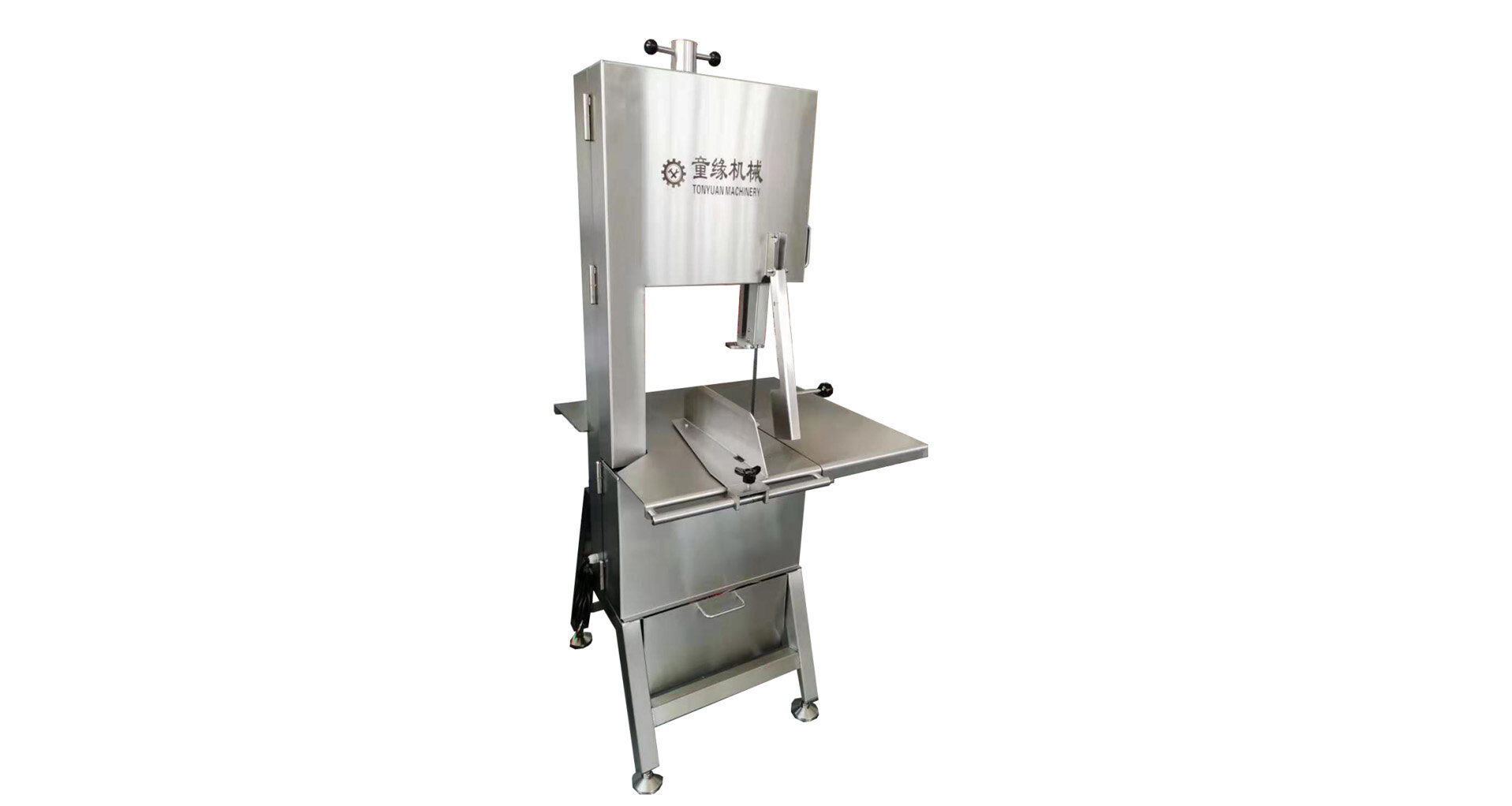

Model: TY-370

Overall Dimensions: 790 x 765 x 1750 mm

Workbench Dimensions: 790 x 715 mm

Workbench Height: 850 mm

Cutting Height: 370 mm

Saw Blade Specifications: 2825 x 16 x 0.56 x 4T

Rotational Speed: 26 m/s

Voltage: 380 V, 50 Hz

Power: 1.5 kW

Weight: 166 kg
