Material:

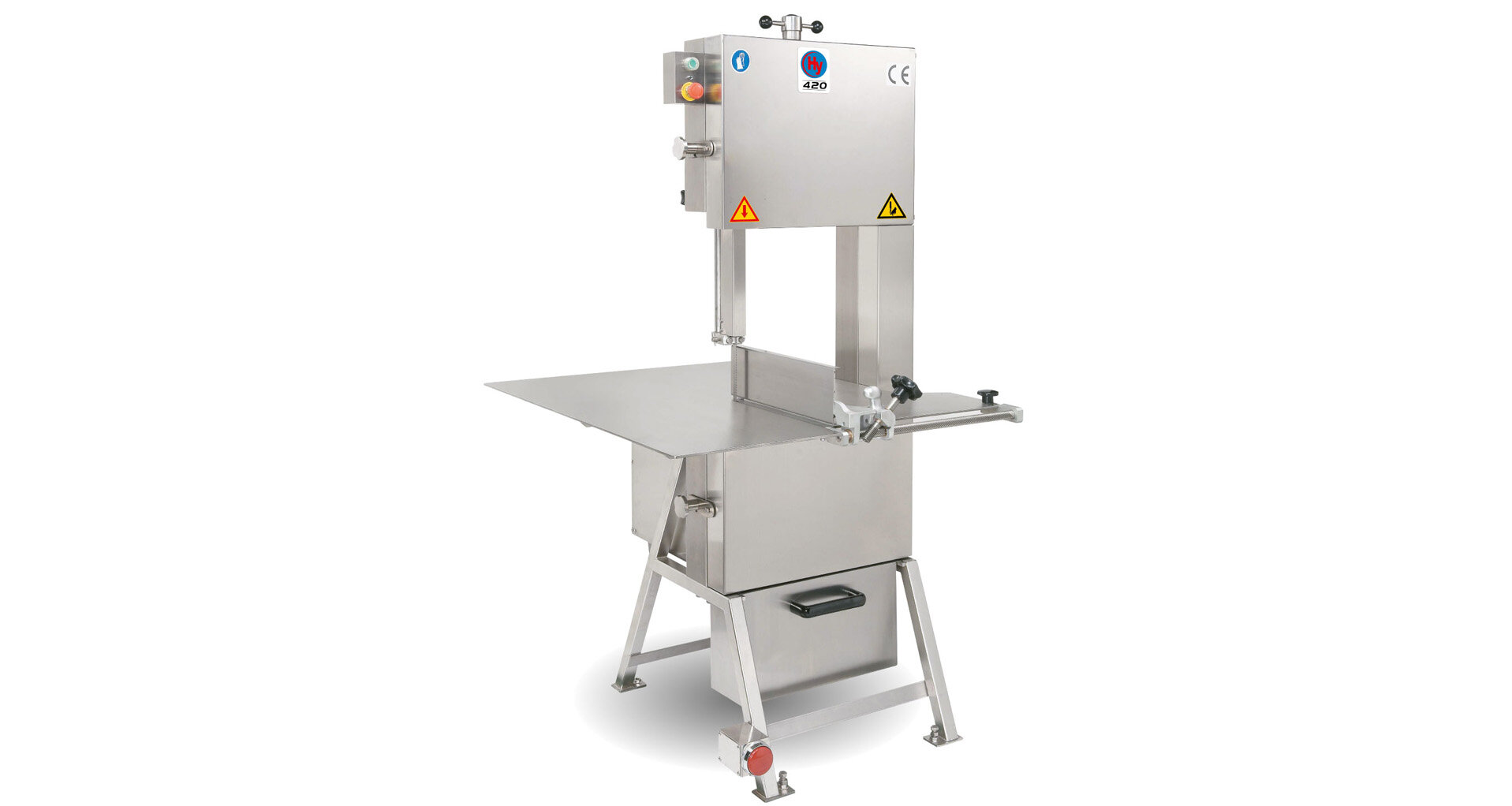

The entire machine is constructed from SUS304 stainless steel with a polished and brushed finish, resulting in a smooth, refined surface with a brilliant luster. Safety switches are installed on the upper and lower covers to ensure operational safety. The machine is equipped with an automatic alarm system for the saw blade tensioning mechanism.

With moderate damping and a dual-side anti-drop design to prevent the saw blade from falling off, the main and auxiliary pulleys operate at a high speed of 37 m/s. The saw blade amplitude is limited to 0.01 mm, exceeding international standards and effectively controlling meat waste.

Sturdy, extra-large worktable with a 5mm-thick top and 10mm-thick load-bearing steel beams underneath, offering a working area of 1055x934mm.

The worktable edge features a ruler scale, and the worm gear vernier allows for precise adjustment and quick switching of cutting thickness. A stabilizing support rod is installed at the rear of the material guide, ensuring your slicing work is accurate down to the millimeter.

Maximum cutting dimensions: 435x406mm. You can choose between a mobile or fixed workbench as needed, and the machine can be customized for left- or right-hand operation.

Technical Specifications:

Model: HY-420R

Cutting Dimensions: 406x435mm

Voltage: 380V, 3-phase, 50Hz

Power: 4 HP

Saw Blade Length: 3150mm

Overall Dimensions: 1055x934x1897mm

Work Table: 1055x934mm

Cutting Speed: 37m/s

Weight: 250kg
