Material:

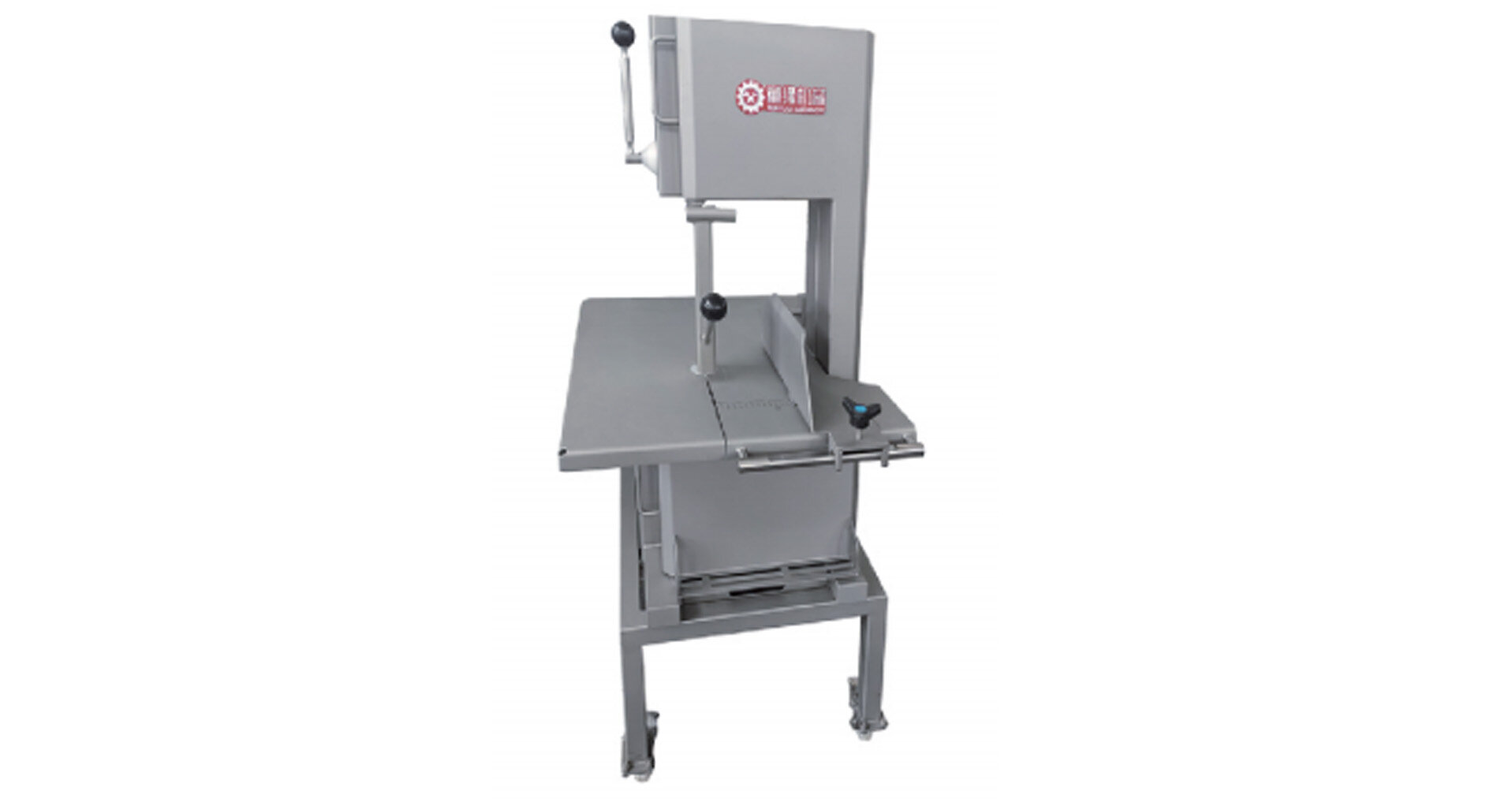

The entire machine is constructed from 304 stainless steel. It features a flat-panel body with a specially treated surface and a smooth interior, ensuring safety, hygiene, and easy cleaning.

Designed to meet IP65 protection standards, it can be cleaned with a high-pressure water jet.

The drive pulley and idler pulley are precision-cast from stainless steel and machined to exacting specifications.

This machining ensures smoother high-speed cutting, while the dual-side drive pulley design prevents the band from slipping off, ensuring safety and reliability.

The saw blade is tensioned using industrial gas springs for floating support, allowing the blade tension to be adjusted to the optimal state. During cutting, the saw blade remains stable without wandering, and the tension remains consistent. The guide blocks are made of tungsten steel and copper alloy, offering high wear resistance and self-lubricating properties, which improve cutting stability. Vibration amplitude testing shows a value as low as 0.01 mm, effectively reducing wear during the cutting process.

The drive pulley is directly connected to the motor. The motor is equipped with a braking function that allows the drive pulley to stop instantly. The addition of variable frequency control ensures the saw blade accelerates smoothly during startup, avoiding excessive impact and extending the blade’s service life.

The saw blade cutting speed is adjustable to meet customers’ requirements for cutting various materials.

The thickness adjustment plate features a reinforced design, making it easy to adjust the processing thickness without wobbling during movement. The sliding table assist system makes operation easier.

Directly supplied from the factory; can be customized to meet customer requirements.

Technical Specifications:

Model: TY-260

Blade Speed: 18 m/s

Power: 1.1 kW

Dimensions: 720 x 560 x 1080 (1420) mm

Saw Blade Specifications: 2087 x 16 x 0.56 x 4T

Weight: 105 (115) kg

Work Table Dimensions: 460 x 660 mm

Rotational Speed: 20 m/s

Work Table Height: 460 (800) mm

Voltage: 380 V, 50 Hz
