Equipment Features:

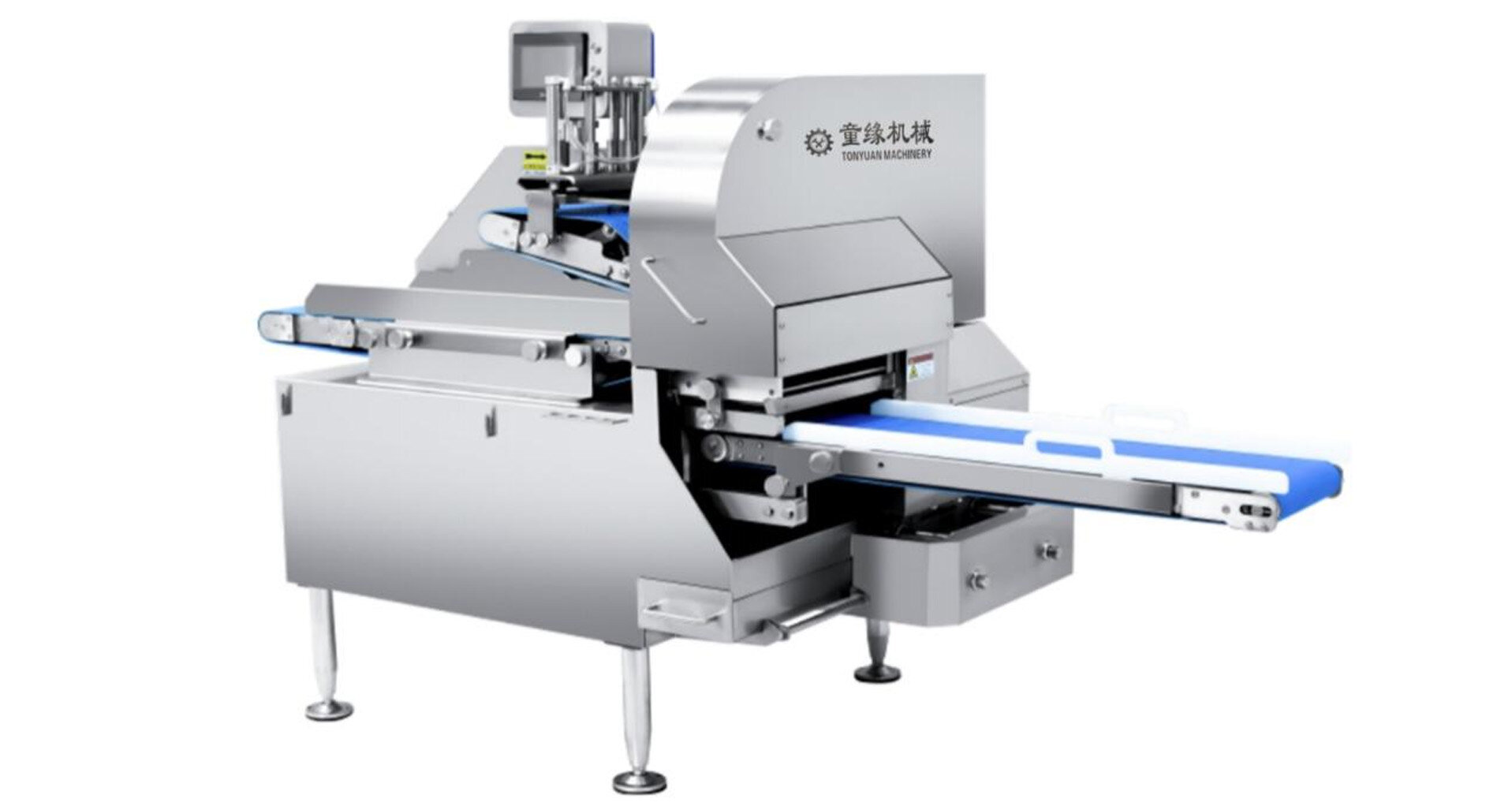

Primarily designed for use in meat processing plants and distribution centers, this machine can slice various types of boneless frozen and fresh meat (beef, lamb, poultry, and seafood). It features a digital control panel for simple operation and can slice, dice, or cut into strips.

Equipment Features:

This series incorporates German craftsmanship and technology; features a brushed stainless steel finish; boasts a high-quality, seamless all-stainless steel body; includes easily removable blade assemblies for convenient cleaning; and utilizes independent blade sets with high-strength nylon gears for reduced noise.

This product uses imported blades made of SUS420 stainless steel with a special quenching process, offering superior wear resistance, corrosion resistance, and hardness; suitable for small, medium, and large-scale catering and meat processing enterprises; high-power reducer with gear transmission delivers strong output power;

The motor reducer features a dual-seal system, which not only extends service life but also ensures safe and reliable operation.

The conveyor belt and blade assembly can be quickly disassembled for easy cleaning, meeting food hygiene requirements. The entire machine features a waterproof design with a brushed stainless steel finish, allowing it to be directly rinsed with water;

Feeding and Discharging: Utilizes a conveyor belt for both feeding and discharging, ensuring neat product cuts and convenient operation, enabling rapid packaging of finished products. Feeding conveyor belt width: 300 mm;

Feed height: 80 mm. Cutting specifications: Cutting dimensions can be adjusted from 5 mm to 30 mm according to customer requirements; cutting temperature: -3 to 0°C; capable of slicing, dicing, or cubing as required.

Equipment Features:

The main cutting motor uses a German-imported motor, with a Panasonic (Japan) motor for feeding, a Siegling (Germany) belt for conveying, and Omron controllers, among other imported electrical components.

Technical Specifications:

Model: TY-300B

Power: 3.0 kW

Voltage: 380 V

Capacity: 800 kg/h

Blade Diameter: 120 mm

Cutting Range: 5–30 mm

Equipment Weight: 550 kg

Dimensions: 2300 x 1100 x 1515 mm
