Equipment Features:

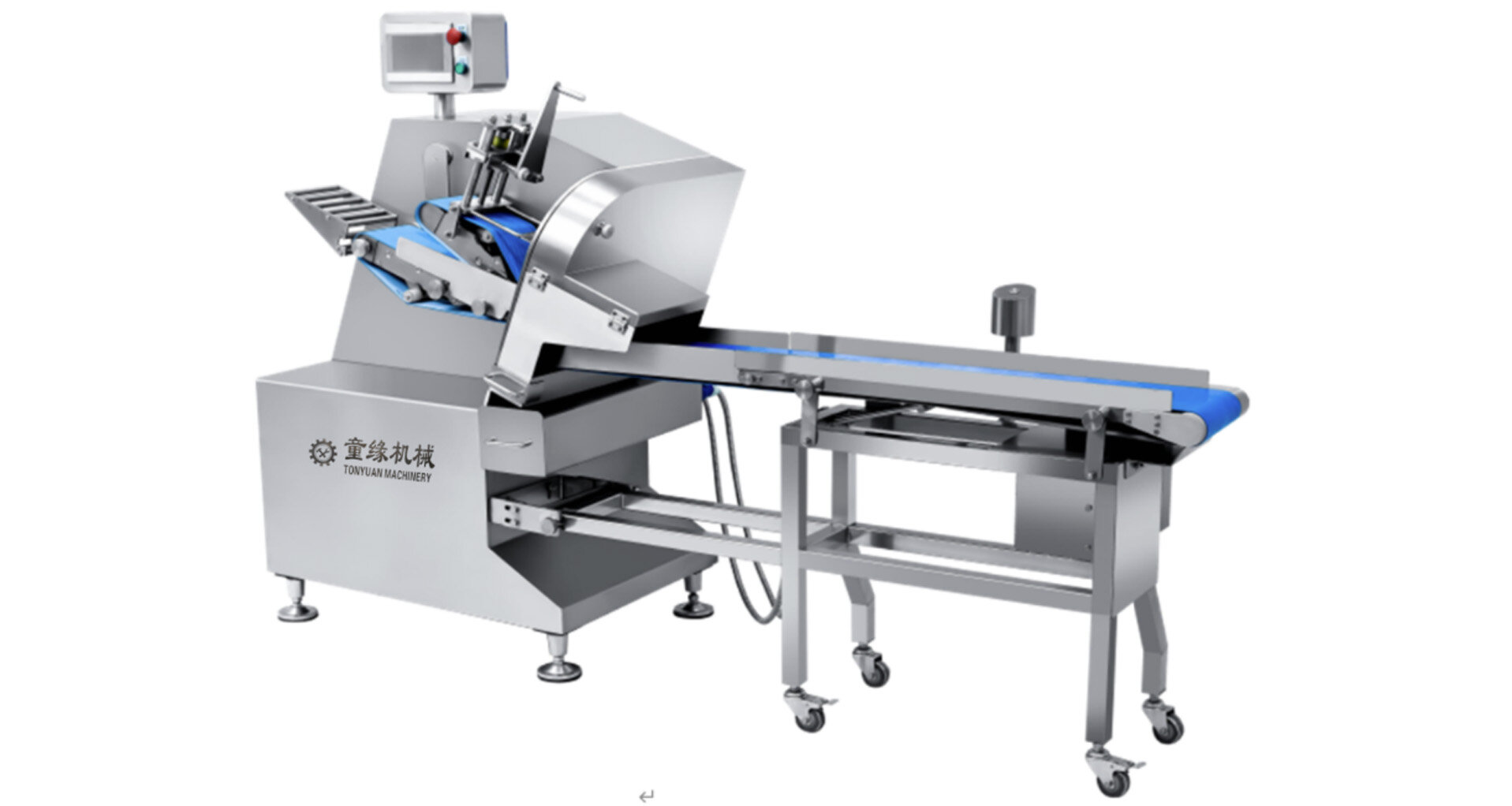

Primarily designed for use in meat processing plants and distribution centers, this machine can slice various types of boneless fresh meat (beef, lamb, poultry, and seafood). It features a digital control panel for simple operation.

Equipment Features:

This series incorporates German craftsmanship and technology;

Brushed stainless steel finish;

High-quality, seamless, all-stainless-steel body design;

Easy-to-disassemble blade assembly for convenient cleaning; independent blade units; high-strength nylon gears for noise reduction;

Features imported blades made of SUS420 stainless steel with a special quenching process, offering superior wear resistance, corrosion resistance, and hardness;

Suitable for small, medium, and large-scale catering and meat processing enterprises;

High-power gear reducer with gear transmission delivers strong output power;

The motor reducer features a dual-seal system, which not only extends service life but also ensures safe and reliable operation.

Conveyor belts and blade assemblies can be quickly disassembled and reassembled for easy cleaning, meeting food hygiene requirements: The entire machine features a waterproof design with a brushed stainless steel finish, allowing direct rinsing with water;

Feeding and Discharging:

Conveyor belt feeding and discharging ensure neat product cuts, easy operation, and rapid packaging of finished products;

Feed conveyor belt width: 160 mm; Feed height: 90 mm

Cutting Specifications:

Cutting dimensions can be adjusted from 1 mm to 30 mm according to customer requirements; cutting temperature range: -3°C to +15°C; capable of portioned slicing or continuous slicing as required.

Equipment Features:

The main cutting motor uses a German-imported motor, with a Panasonic (Japan) motor for feeding, a Siegling (Germany) belt for conveying, and a Mitsubishi controller, among other imported electrical components.

Technical Specifications:

Power: 1.25 kW

Voltage: 380 V

Production Capacity: Up to 260 slices/minute (varies depending on cutting thickness)

Cutting Range: 1–30 mm

Equipment Weight: 360 kg

Main Unit Dimensions: 1150 × 690 × 1515 mm

Combined Unit Dimensions: 2315 × 690 × 1515 mm

Output Rack Dimensions: 1550 × 390 × 1000 mm
