Equipment Features:

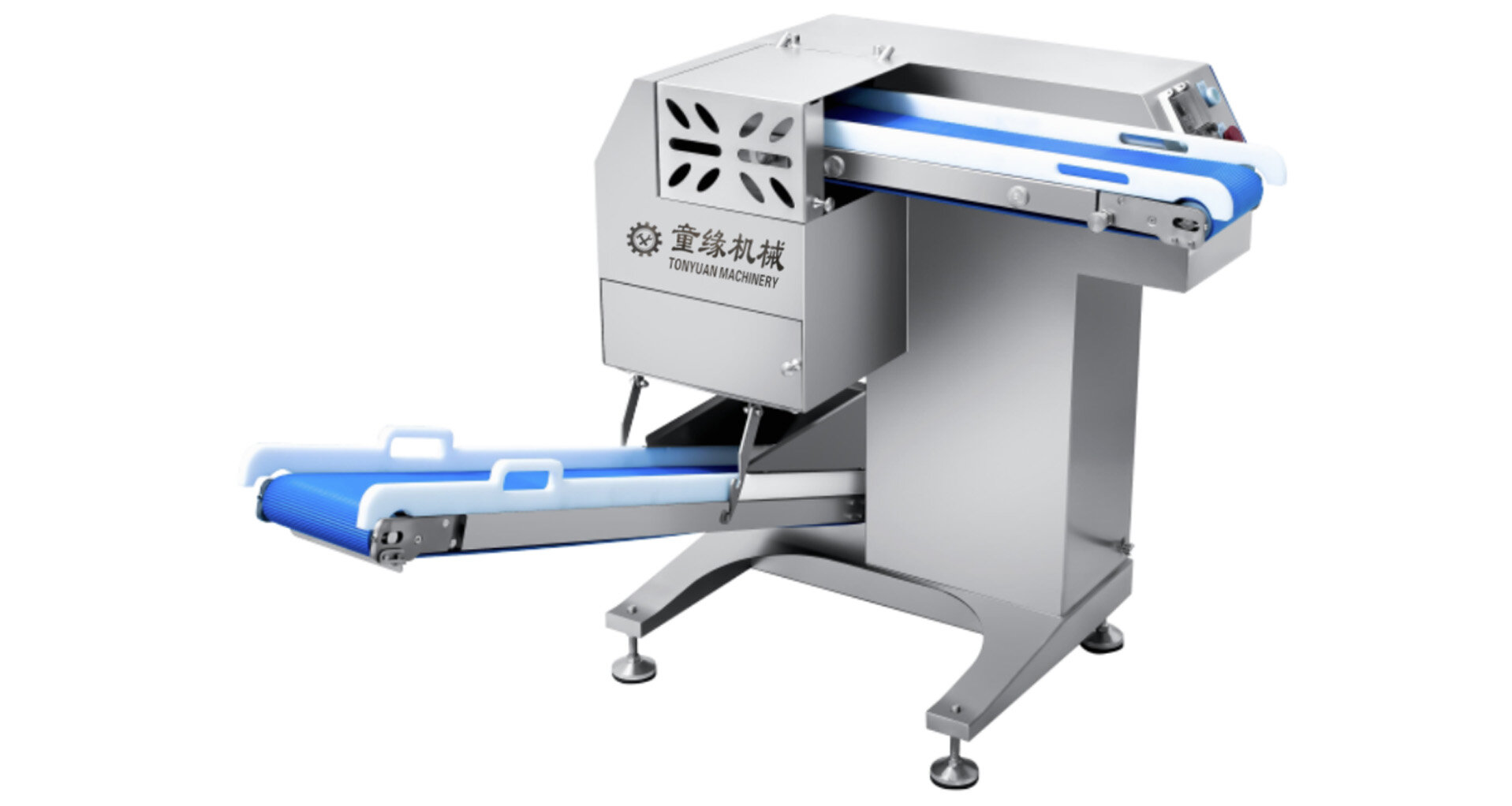

Primarily designed for use in meat processing plants and distribution centers, this machine can slice various types of boneless fresh meat (beef, lamb, poultry, and seafood).

Equipment Highlights:

This product series incorporates German craftsmanship and technology;

Brushed stainless steel finish;

High-quality, seamless, all-stainless-steel body;

Easy-to-disassemble blade assembly for convenient cleaning; independent blade units; high-strength nylon gears for noise reduction;

Features imported blades made of SUS420 stainless steel with a special quenching process, offering superior wear resistance, corrosion resistance, and hardness;

Suitable for small, medium, and large-scale catering and meat processing enterprises;

High-power gear reducer with gear transmission delivers strong output power;

The motor reducer is equipped with a dual-seal system, which not only extends service life but also ensures safe and reliable operation.

The conveyor belt and blade assemblies can be quickly disassembled for easy cleaning, meeting food hygiene requirements: The entire machine features a waterproof design with a brushed stainless steel finish, allowing it to be directly rinsed with water;

Feeding and Discharging:

Conveyor belt feeding and discharging ensure neat product cuts and convenient operation, enabling rapid packaging of finished products. Conveyor belt width: 190mm; Feed height: 70mm; Blade diameter: 130mm.

Cutting Specifications:

Different blade sets can be replaced according to customer requirements to meet various cutting specifications; minimum cutting thickness: 2.5 mm.

Technical Parameters:

Power: 1.5 kW + 1.5 kW

Voltage: 380 V

Capacity: 2000 kg/h

Blade Diameter: 130 mm

Feed and Discharge Height: Feed height 1000 mm; discharge height adjustable between 750 mm and 850 mm.

Equipment Weight: 280 kg

Machine Dimensions: 1100 × 1460 × 1070 mm
