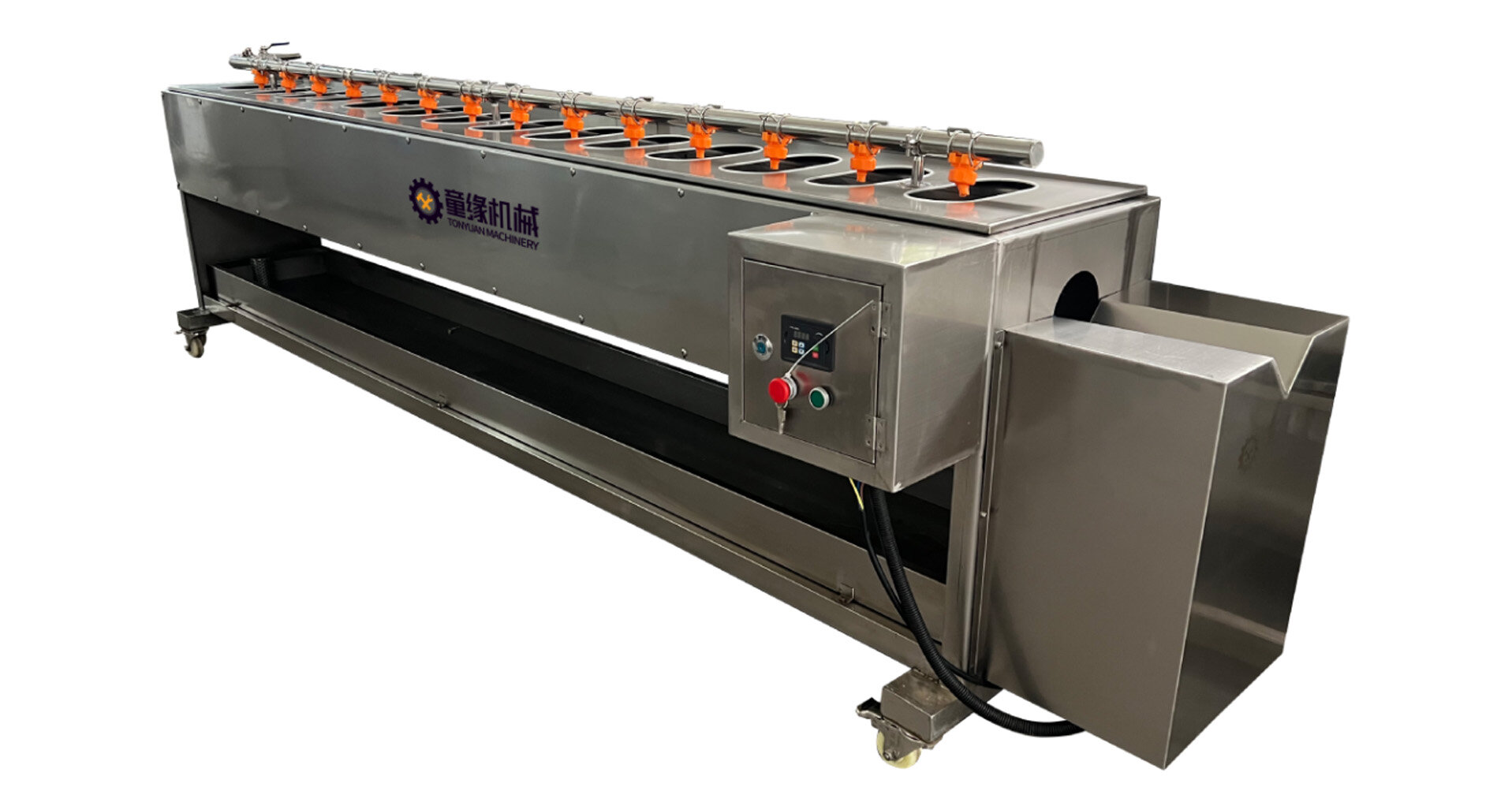

Equipment Construction: The machine consists of four main components: the frame, the cutting assembly, the feeding mechanism, and the control panel. Equipment Features:

Simple to operate, easy to use, and highly automated for continuous operation. Working Principle:

After the machine is started, yams are fed into the inlet. The feeding mechanism automatically moves the yams forward while they pass through the cutting assembly for peeling.

Technical Specifications:

Dimensions: 2113 x 592 x 1470 mm

Power: 0.75 kW

Voltage: 380 V, 50 Hz

Capacity: 3–20 mm

Weight: 254 kg

Raw Material Requirements

Length: 45 cm or longer; Diameter: 2.0–3.5 cm. The straighter the raw material, the better the peeling results.
