Used to spin-dry materials after washing to remove surface moisture, facilitating subsequent air-drying and packaging, thereby improving material quality and extending shelf life.

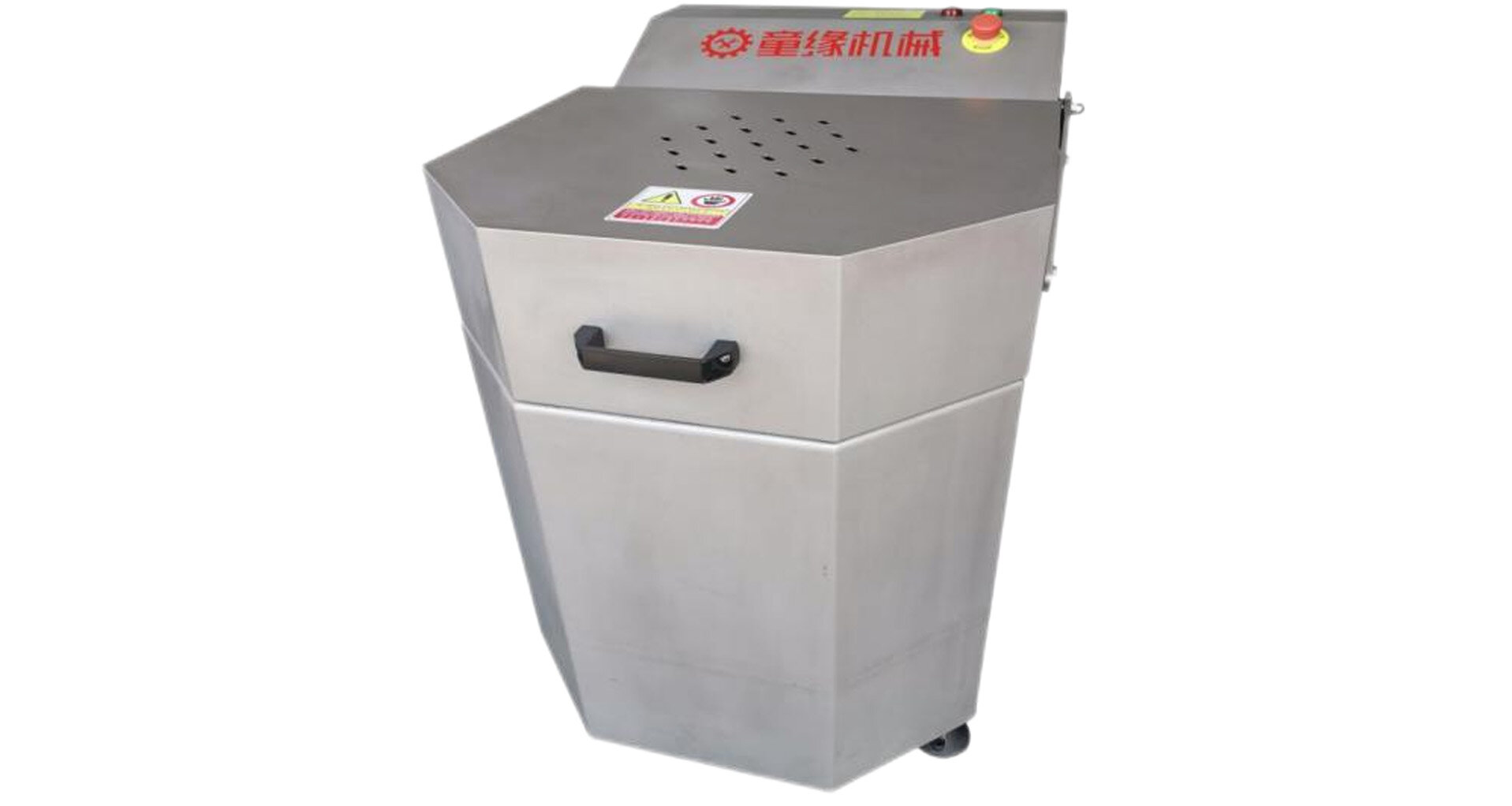

Operators manually load the materials into the spin-drying drum provided with the equipment. Driven by a motor, the drum rotates at high speed. Under the force of centrifugal force, moisture on the surface of the materials is separated through small holes in the drum and drained out through the outlet. The spun-dried materials are then manually removed.

Constructed from high-quality SUS304 stainless steel, ensuring hygiene and safety.

Features a portable centrifugal design that gently spins-dries materials without causing damage.

Incorporates advanced, specialized anti-vibration and noise-reduction technology,

resulting in low overall noise levels and excellent spin-drying performance.

Equipped with electrical components compliant with CE standards,

the main drive motor is fitted with an electromagnetic brake,

and a variable frequency drive (VFD) allows for adjustable spin speed,

with programmable runtime settings to accommodate various materials.

It comes with spin drum accessories to meet practical operational needs, saving labor, time, and energy while ensuring convenience, hygiene, and environmental friendliness.

Technical Specifications:

Model: TC-5

Voltage: 220V Single-phase 50Hz

Dimensions: 960x700x890mm

Processing Capacity: 300-500 kg/h

Power: 0.75 kW

Spin Drum Diameter: 405 mm

Weight: 150 kg
