Overview:

When used in conjunction with a meat roll tension tester, this meat roll filling machine can replace the current manual process of filling meat rolls. The resulting meat rolls are visually appealing, uniformly shaped, and firmly and fully filled.

Constructed entirely of stainless steel, it ensures safe and hygienic operation.

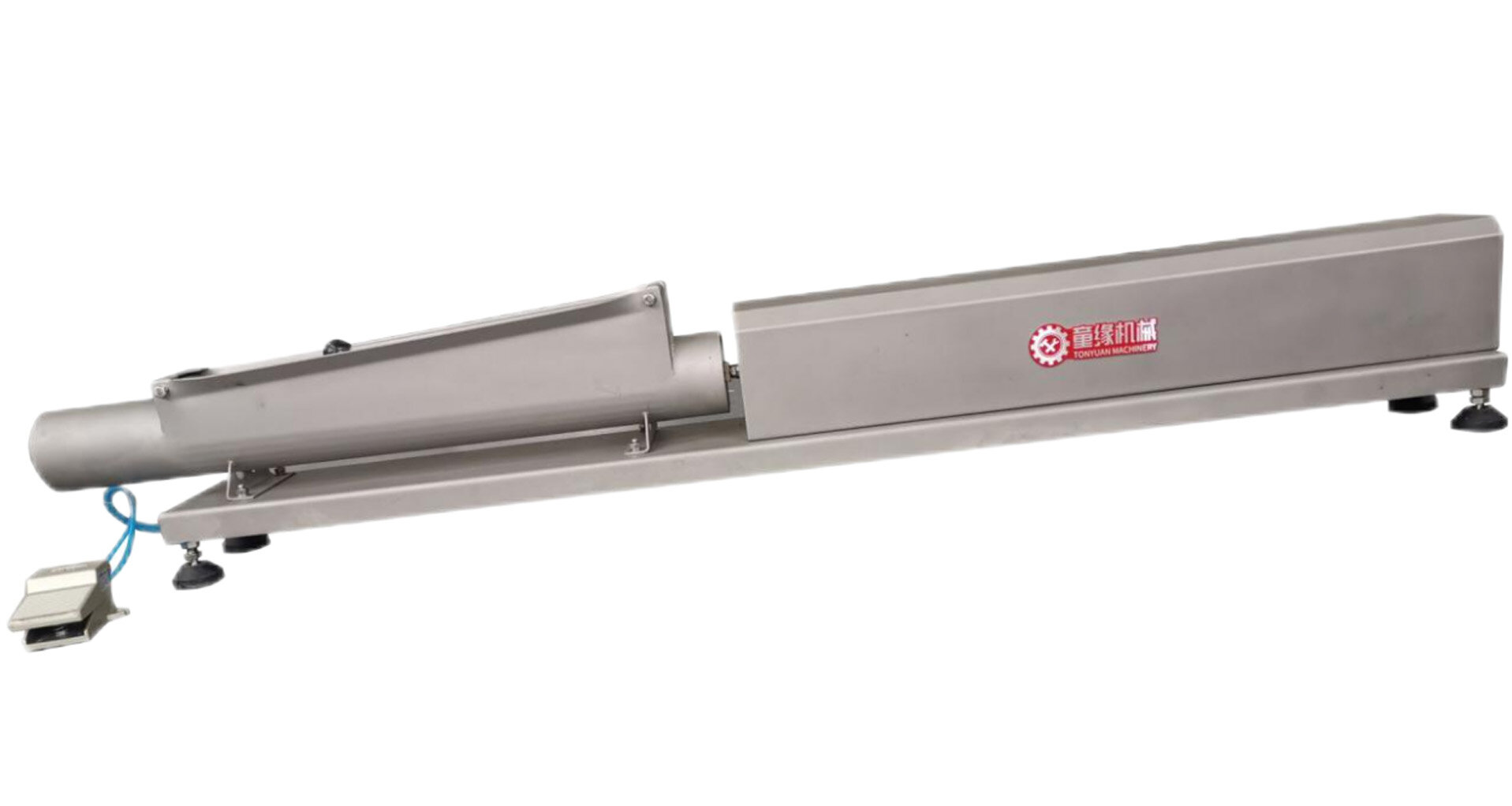

Lamb Roll Filling Machine:

This filling equipment was specifically designed and developed by our company for beef and lamb filling. Featuring a fully stainless steel body and pneumatic control, it is equipped with a foot switch for safe and hygienic operation. It is easy to use, boosting productivity while reducing labor costs.

Technical Specifications:

Model: TS-TC

Air Pressure Requirement: 0.5 MPa

Dimensions: 1800 mm x 340 mm x 340 mm

Machine Weight: 44 kg

Filling Bag Diameter: 80 mm–120 mm (customizable upon request)

Feed Hopper Length: 600 mm

Production Frequency: 10–12 cycles per minute
