Overview:

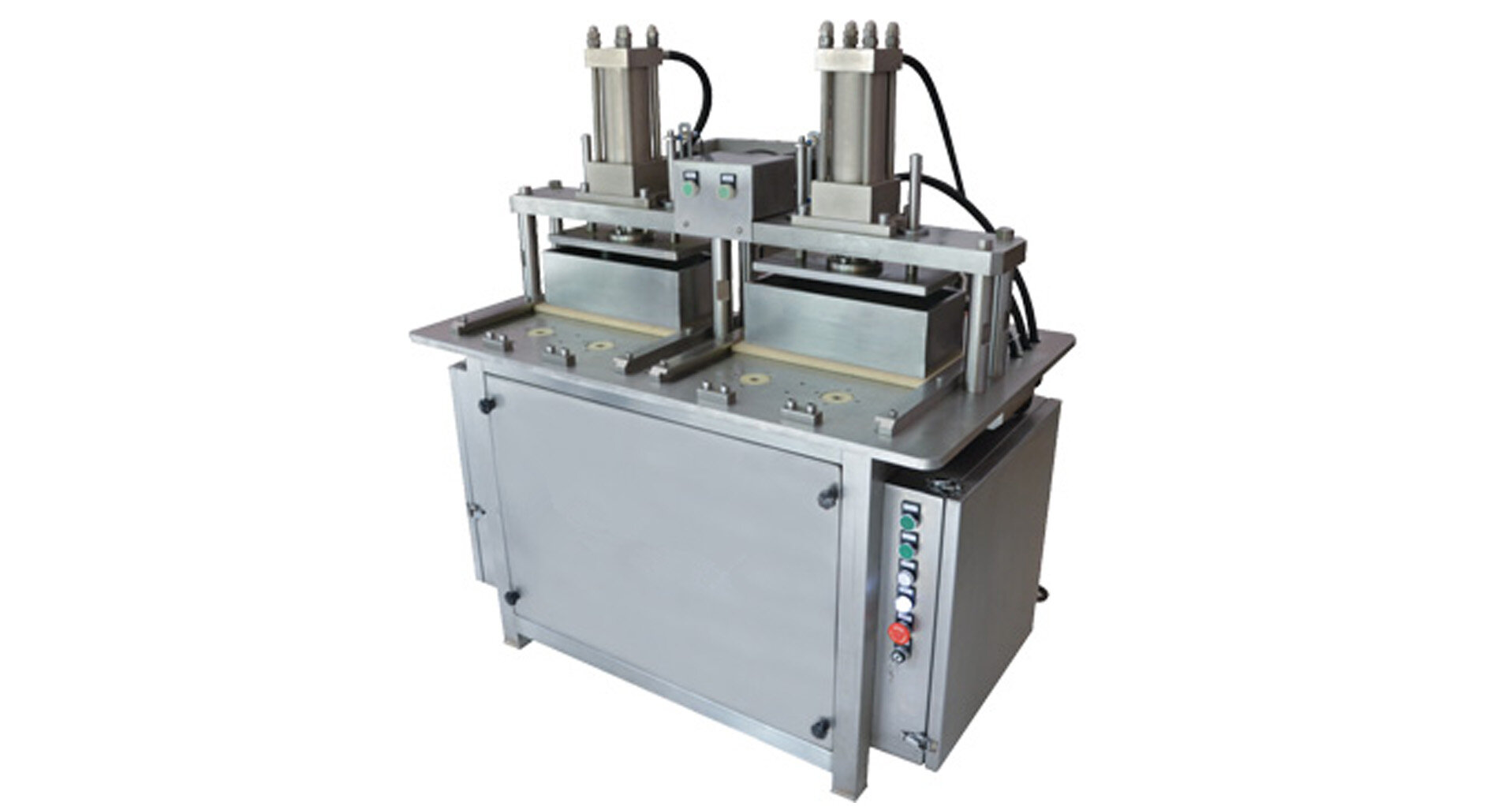

As the original TY-CX forming machine, this model combines both form and function, achieving a perfect balance of safety, efficiency, and practicality. It represents a comprehensive evolution toward higher quality, designed entirely to serve the beef and lamb processing industry.

This equipment is suitable for meat forming in large slaughterhouses and beef and lamb processing plants. Process flow: After the product is vacuum-packed and weighed, it undergoes compression molding before being sent to the cold storage.

Technical Specifications:

Model: TY-CX

Voltage: 220V single-phase / 380V three-phase, 50Hz

Production Capacity: 5–15 pieces per minute (depending on machine speed and operator speed)

Power: 4 kW

Dimensions: 1150 x 800 x 1300 mm

Air Supply Requirement: 0.5 MPa

Workbench: 1150 x 700 mm

Hydraulic System Pressure: 0–10 MPa (adjustable)

Molding Die Dimensions: 340 x 145 x 110 mm (customizable upon request)

Weight: Approx. 500 kg
