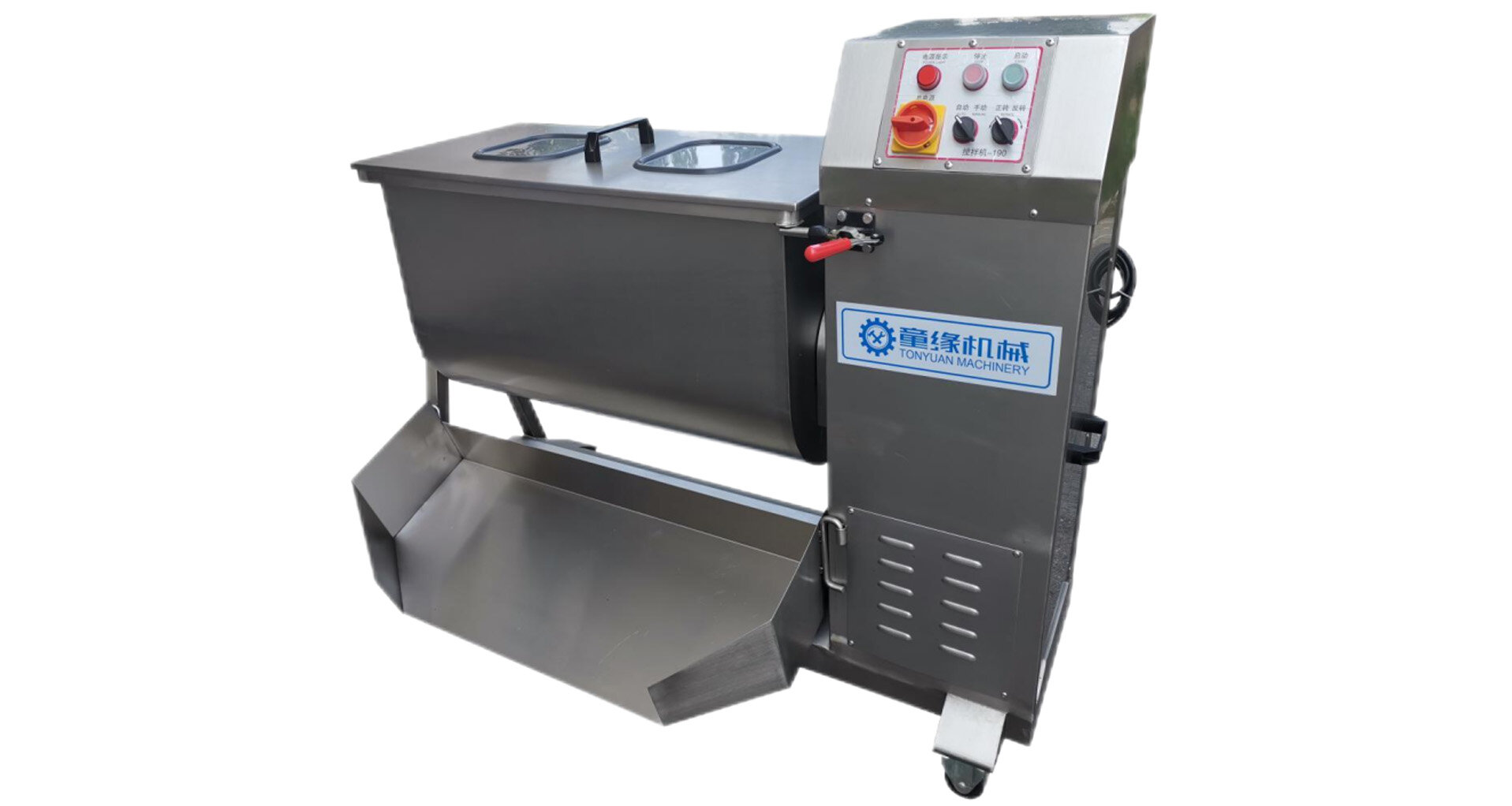

Overview:

The machine frame is constructed entirely of SUS304 stainless steel, ensuring durability. A microswitch is installed at the discharge port to ensure safe operation, making it suitable for mixing powdered or wet materials;

It ensures uniform mixing of main and auxiliary ingredients in varying proportions;

All parts of the machine that come into contact with materials are made of stainless steel. The small gap between the paddles and the drum ensures thorough mixing with no dead zones. Sealing devices at both ends of the mixing shaft prevent material leakage. The machine features forward and reverse rotation and timer control;

Equipped with casters for easy cleaning;

Functions: Mixing and blending of sausages, oil-flavored rice, meat, rice cakes, seasonings, etc. Widely applicable in the pharmaceutical, chemical, and food industries.

Technical Specifications:

Model: TY-190L

Dimensions: 1510 x 430 x 1190 mm

Voltage: 220V single-phase 50Hz / 380V three-phase 50Hz

Power: 3 kW

Capacity: 190 L

Mixing Speed: 24 rpm

Discharge Angle: 105 degrees

Net Weight: 150 kg
