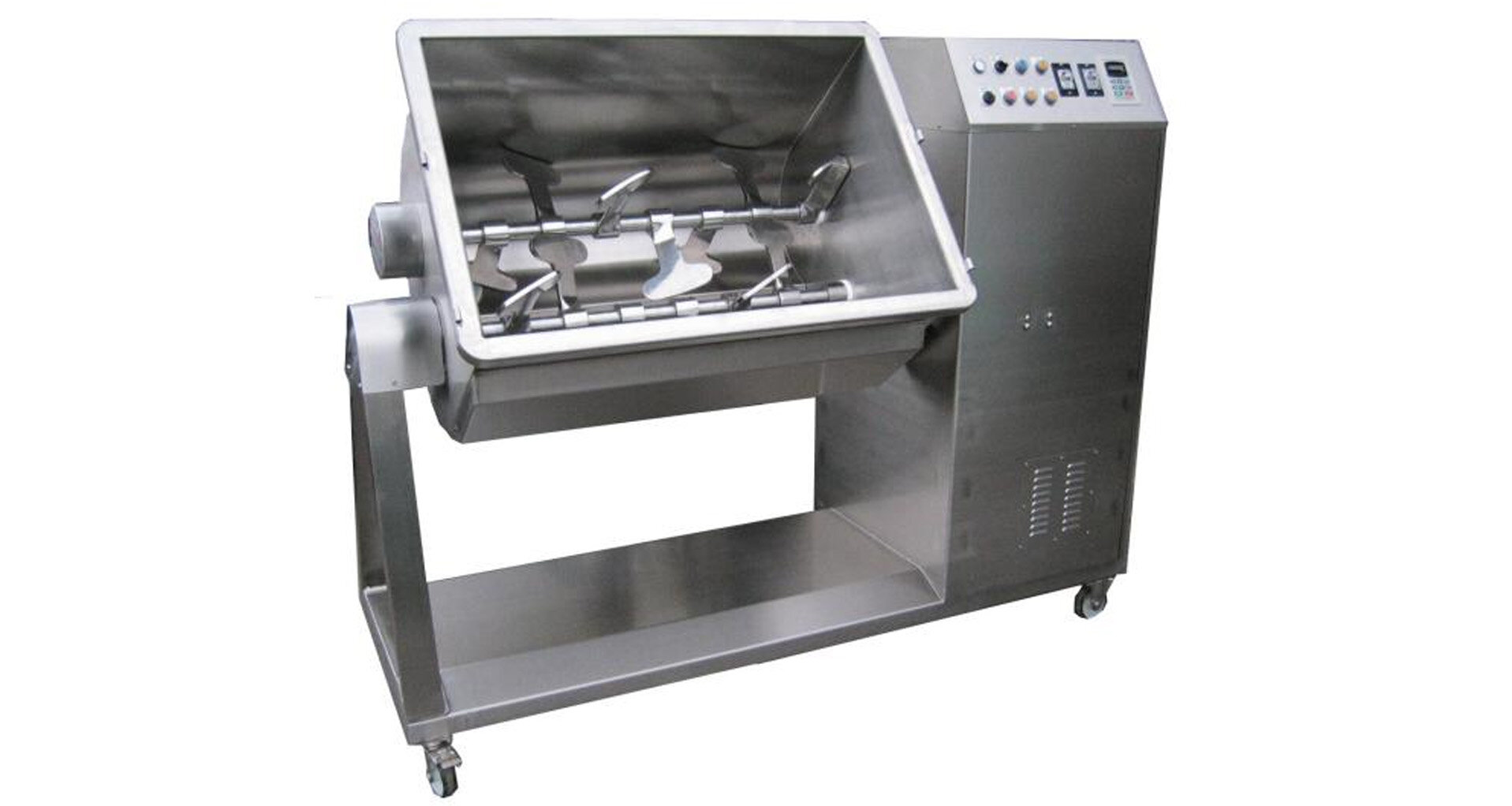

Overview:

The machine frame is constructed entirely of SUS304 stainless steel for durability. A microswitch is installed at the discharge port to ensure safe operation when mixing powdered or wet materials.

This machine ensures uniform mixing of main and auxiliary ingredients in varying proportions. All parts in contact with the material are made of stainless steel. The small gap between the paddles and the tank body ensures thorough mixing with no dead zones. Sealing devices are installed at both ends of the mixing shaft;

preventing material spillage. It features forward/reverse operation, timer control, and casters for easy cleaning;

Functions: Mixing and blending sausages, oil-flavored rice, meat, rice cakes, seasonings, etc. Widely applicable in the pharmaceutical, chemical, and food industries.

Technical Specifications:

Model: TY-300L

Tank Dimensions: 2030x830x1300mm

Inner Chamber Dimensions: 1000 x 750 x 655 mm

Motor and Gearbox: 7.5 HP

Power Supply: 380V / 3-phase / 50Hz

Capacity: 150–250 liters
