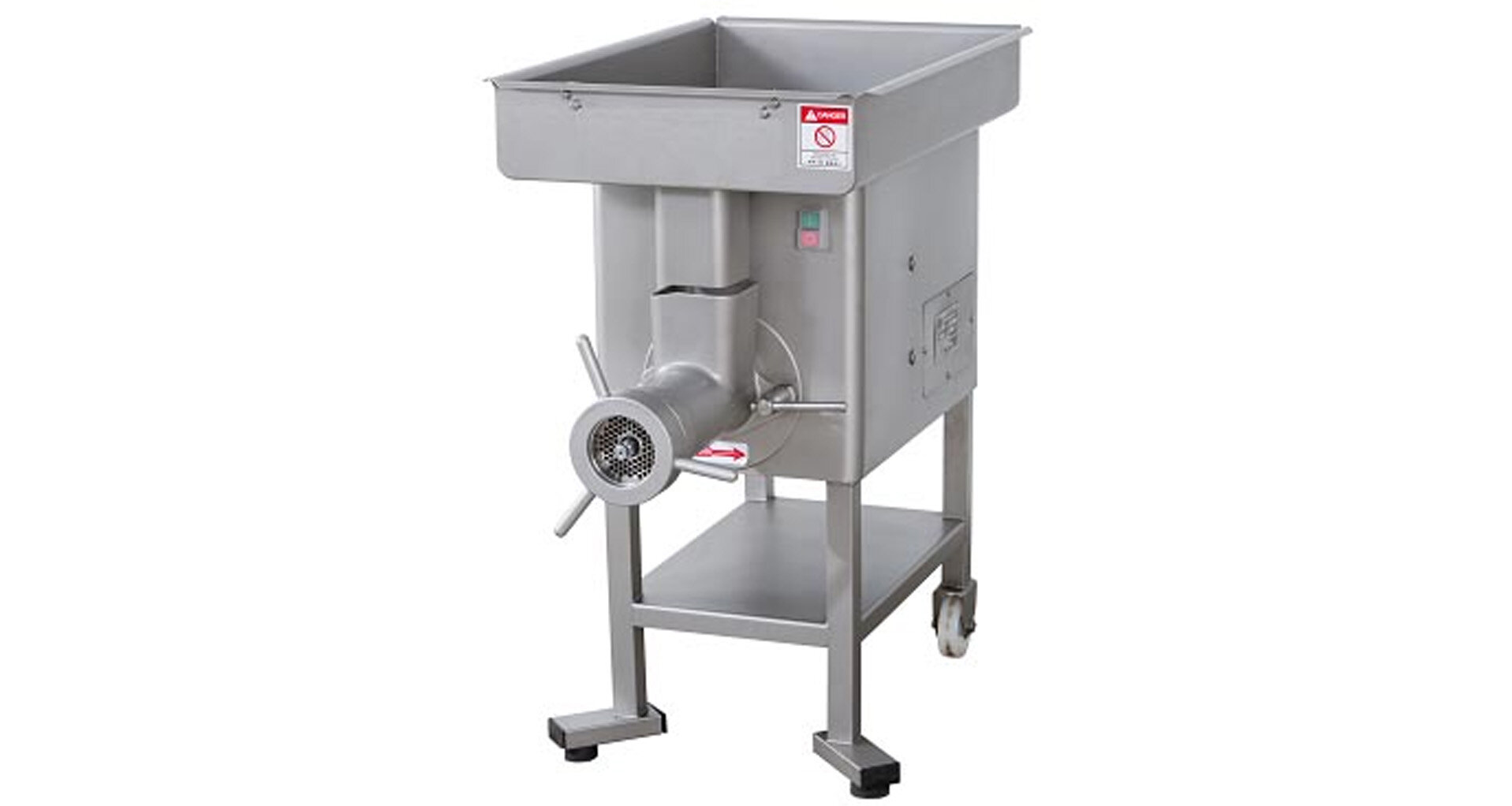

Application:

Grinds meat into minced pieces; features a triple-screen, dual-blade design that produces a coarse texture; suitable for: meat processing plants, seasoning manufacturers, restaurants, supermarkets, meat market processing, and food processing plants;

Features:

Drive System: Direct drive via a Taiwanese-brand reducer; belt- and chain-free design with high torque;

Materials of the mincing tube, feed screw, and nut, as well as the machine surface: Stainless steel; Surface treatment: Glass-blasted matte finish to prevent visual fatigue during prolonged use;

Mincing screen: Imported from Italy; Double-sided mincing blades: Imported from Germany; Motor overload protection with automatic shutdown and reset function;

Comparison between the triple-screen, dual-blade model and the traditional single-blade, single-screen model: Single-blade, single-screen model: High cutting resistance during a single pass; if the screen mesh is 6mm or smaller, grinding typically takes a long time, causing the meat temperature to rise and increasing the risk of spoilage;

Triple-screen, triple-blade model: Uses coarse, medium, and fine screens for cutting, making mincing effortless, producing fine and attractive results, shortening processing time, and reducing the risk of meat spoilage;

Double-sided blades: Two double-sided blades perform dual-sided cutting, resulting in four cuts total. This is more labor-efficient than the single-blade model’s single cut and produces a more uniform mince;

The meat is minced through multiple screens of varying sizes, preserving the meat’s granular texture and visual appeal.

Technical Specifications:

Model: TY-HX32J

Motor Power: 4 kW

Voltage: 380V

Capacity: 1000 kg/h

Weight: 180 kg

Dimensions: 1110 x 586 x 1047 mm
