Material:

The entire machine is constructed from SUS304 stainless steel with a brushed and polished finish, resulting in a smooth, refined surface with a brilliant luster.

Safety switches are installed on the upper and lower covers to ensure operational safety. The machine is equipped with an automatic alarm system for the saw blade tensioning mechanism.

With moderate damping, the dual-sided drive pulleys feature an anti-slip design to prevent the saw blade from coming off. The main and auxiliary pulleys operate at a high speed of 32 meters per second, with saw blade amplitude limited to 0.01 mm—exceeding international standards—effectively controlling meat waste and minimizing loss.

The sturdy, extra-large worktable features a 5mm-thick top with 10mm-thick load-bearing steel beams underneath, providing a working area of 1028x778mm.

The table edge is equipped with a ruler scale, and the worm gear vernier allows for precise adjustment and quick switching of cutting thickness. A stabilizing support rod is installed at the rear of the material guide, ensuring your slicing work is accurate to the millimeter.

Maximum material cutting dimensions: 340x330mm. You can choose between a mobile or fixed workbench as needed, and the machine can be customized for left- or right-hand operation.

Technical Specifications:

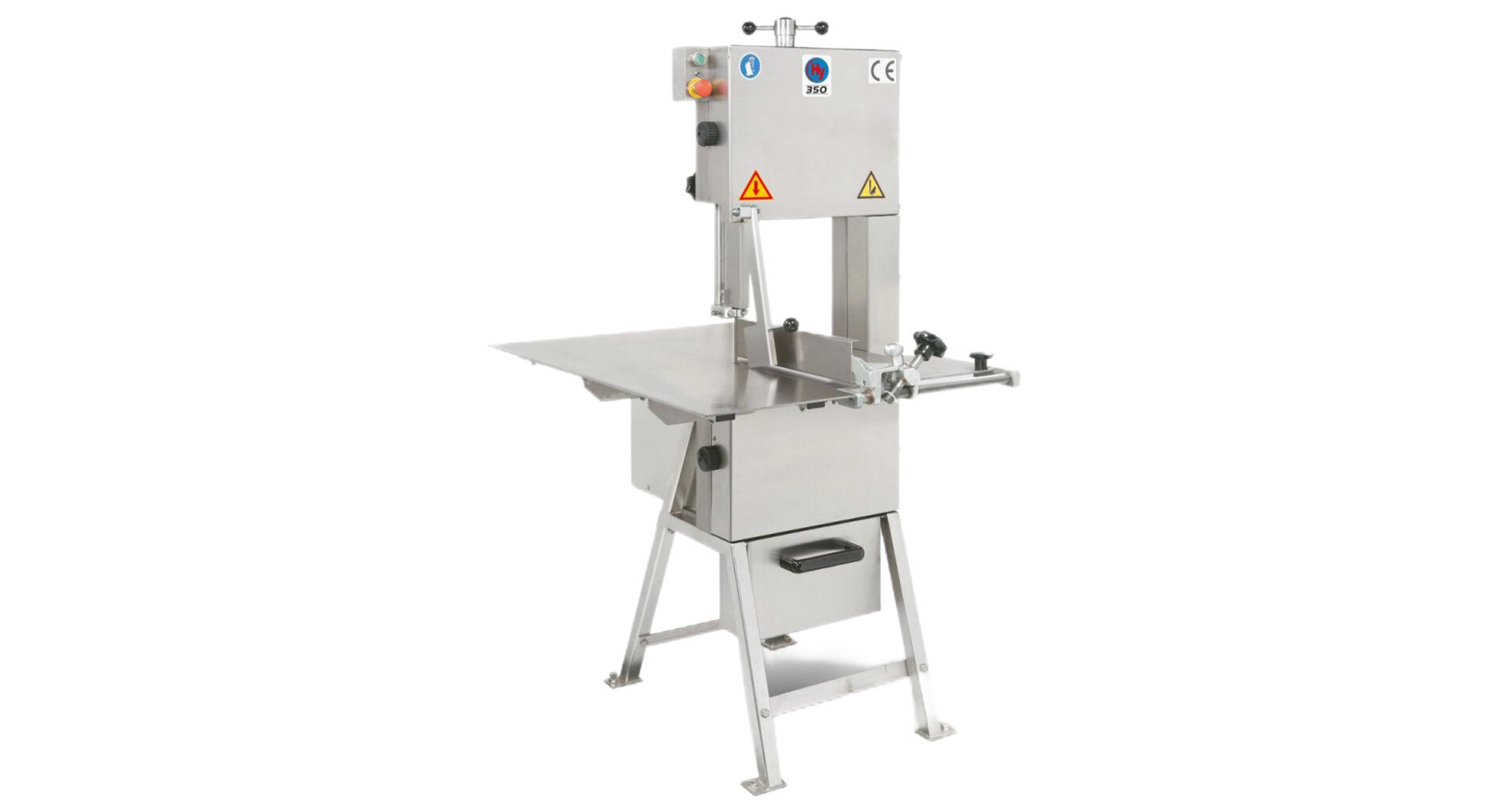

Model: HY-350

Overall Dimensions: 1028×778×1718mm

Workbench: 1028×778mm

Cutting Area: 340×330mm

Voltage: 380V, 3-phase, 50Hz

Power: 3HP

Saw Blade Length: 2578mm

Cutting Speed: 32m/s

Weight: 140kg
