Overview:

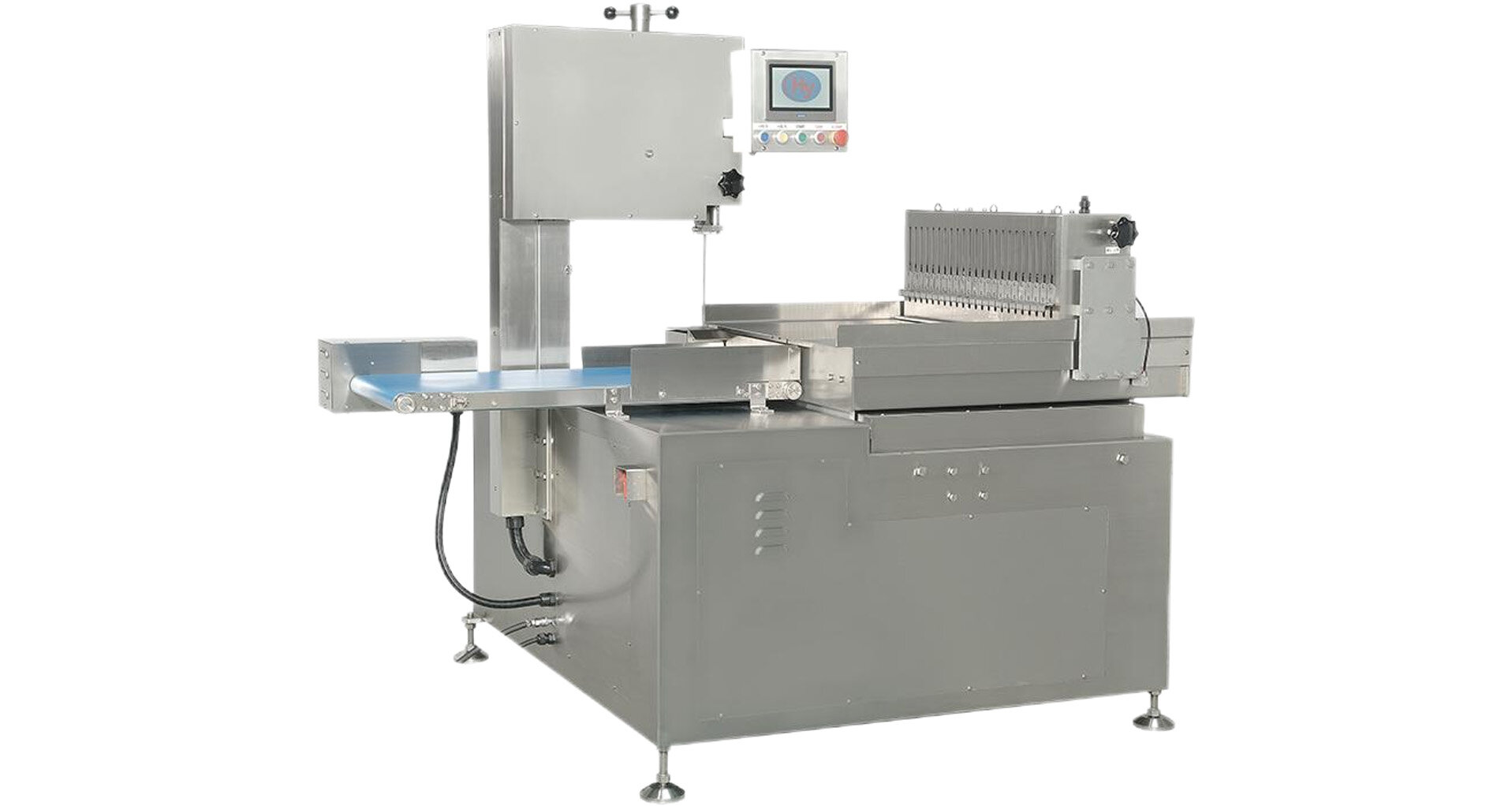

The HY-420A bone saw is specially designed to save space for retail stores, restaurants, and fresh food vendors. Though compact and elegant, it retains the authentic craftsmanship of a master artisan. The aluminum alloy body features a powder-coated finish that offers a smooth texture and is easy to clean.

The pneumatic, adjustable material clamping mechanism provides consistent, stable, and reliable grip, ensuring no irregularly shaped product can escape its hold.

The automatic feeding system frees up your hands, ensuring safe operation and meat hygiene.

The pneumatic air-blowing cleaning system ensures the saw blade maintains lasting power and smooth operation.

The Swiss-imported saw blade operates at high speed with quietness and stability beyond your imagination.

Composite hardwood saw blade scrapers provide a reliable guarantee for extending the saw blade’s lifespan.

The smart control panel features 5 preset memory functions. During operation, cutting thickness can be dynamically adjusted

within a range of ±0.1mm, ensuring consistently precise cuts.

Technical Specifications:

Power Supply: 380V/50Hz

Material Trough Dimensions: 680x770x160mm

Machine Dimensions: 1990x2030x1810mm

Power: 3.75 kW

Cutting Thickness: 5–200 mm

Weight: 1000 kg

Output: 8–13 cuts/minute

Cutting Speed: 38 m/s
