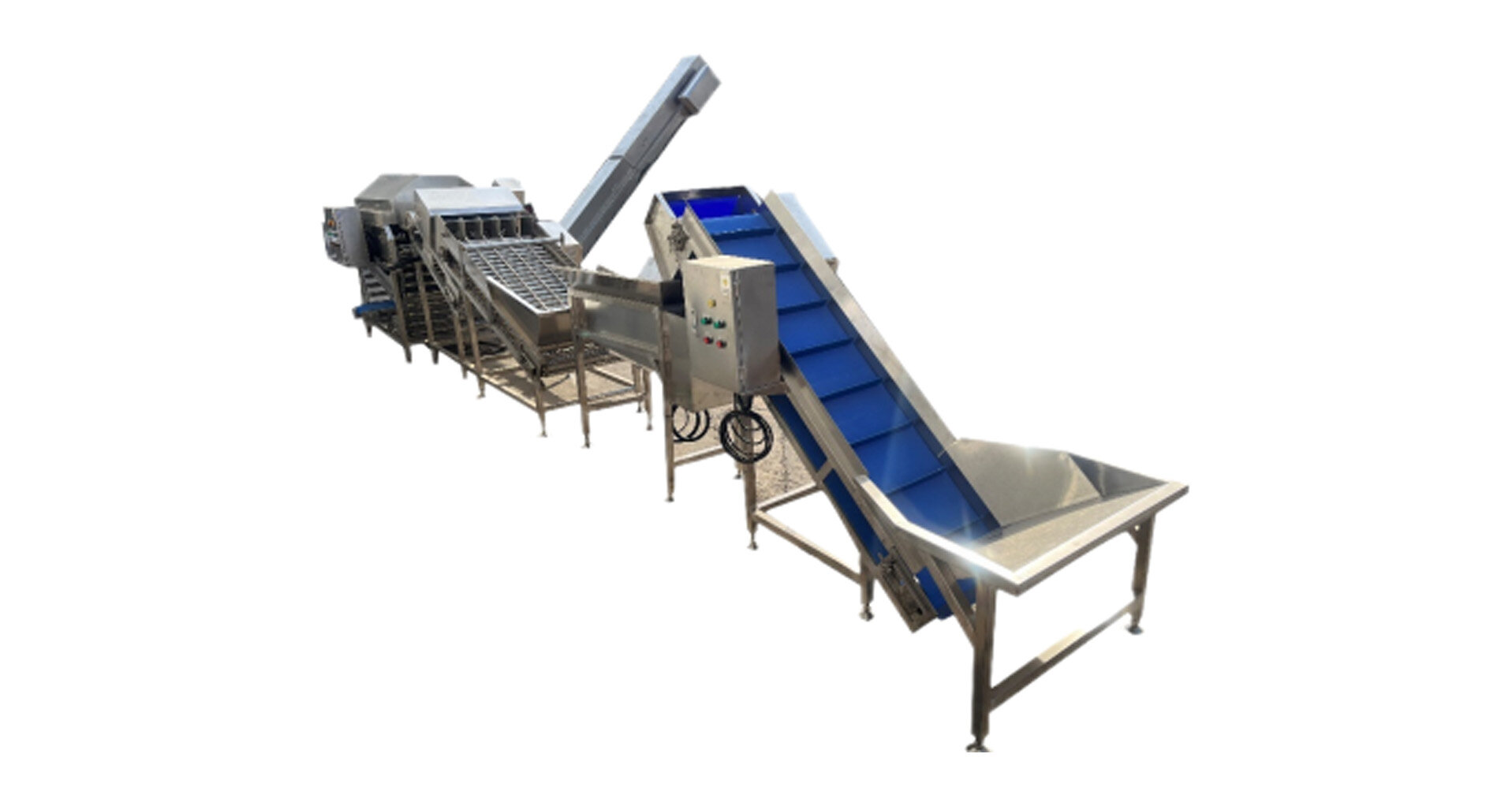

Equipment Construction:

The equipment consists primarily of four major components: the frame, the feeding assembly, the peeling mechanism, and the control panel.

Equipment Features:

Simple to operate, easy to use, and damage-free peeling; high degree of automation enables continuous operation.

Working Principle:

Once onions are loaded into the hopper, the machine starts. The onions are automatically conveyed forward by the drive mechanism while undergoing the peeling process.

Technical Specifications:

Model: TY-2000B

Raw Material Conveyor: 2240x930x1600mm

Brush Pre-processing Unit: 1415x645x1220mm

Feeder: 2260x980x1380mm

Peeling Machine: 1305x950x1600mm

Blow Peeling Machine: 2190x1510x1635mm

Waste Conveyor: 1640x680x450mm

Waste Conveyor: 2710x770x2880mm

Recommended Air Compressor: 55 kW

Operating Air Pressure: 0.6 MPa

Power: 4.5 kW

Voltage: 3-phase 380V 50Hz

Production Capacity: Approximately 2000 kg/h
