Overview:

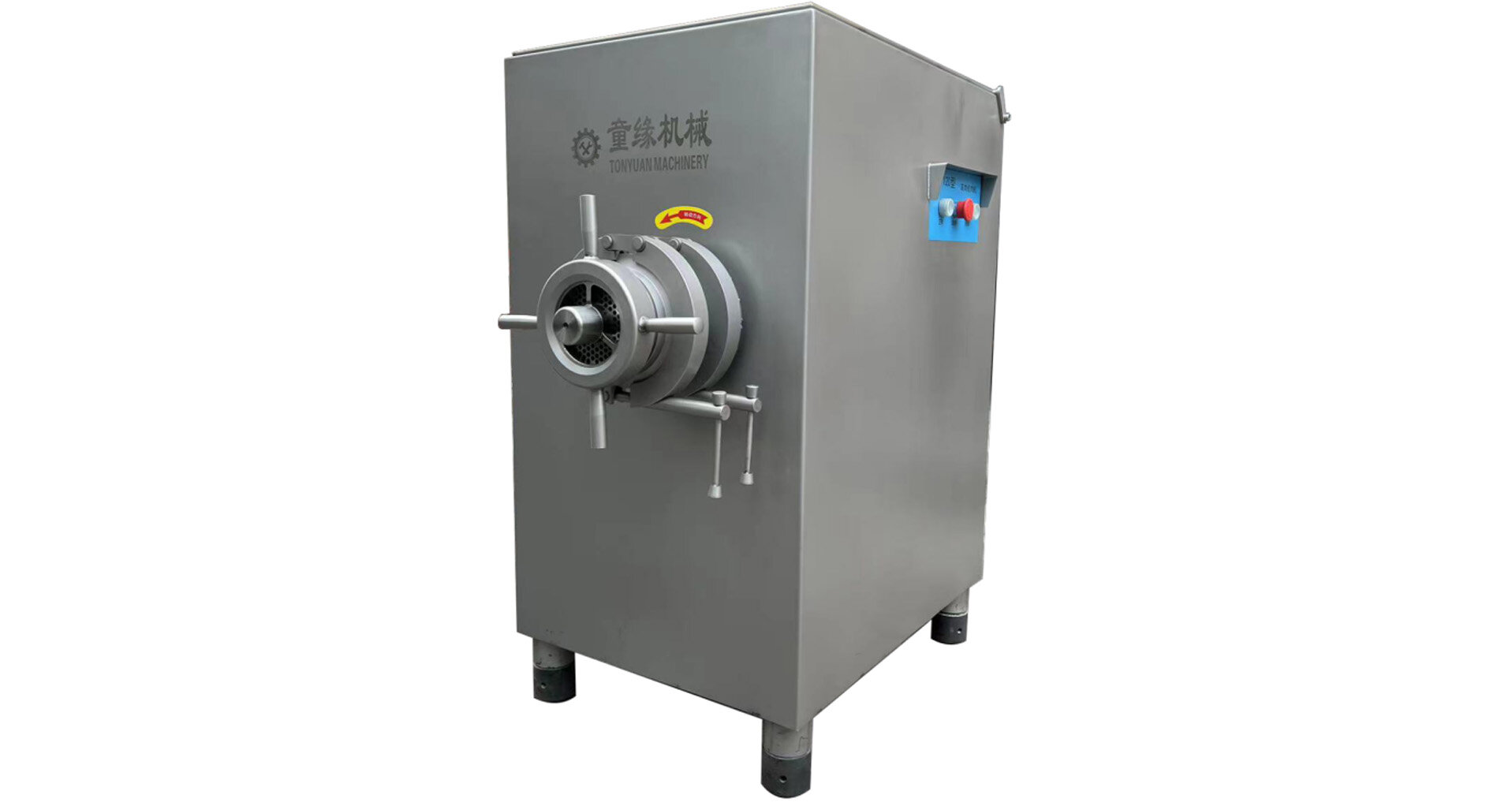

This machine features an offset feed mechanism, ensuring fast and smooth discharge;

All exposed parts, the feed hopper, and the auger are made of SUS304 stainless steel.

A safety guard is installed at the feed inlet, equipped with a sensor switch; the machine stops automatically when the guard is opened;

The motor, electrical components, and transmission system are well-protected;

The auger, blades, and screen plates are easy to remove and install, facilitating cleaning.

Wear Parts: Perforated screens, cutting blades.

Application:

Mincing fresh chilled meat at temperatures above -10°C;

This machine can be equipped with perforated screens of different mesh sizes according to meat processing requirements

to cut raw meat into particles of various sizes.

The minimum particle diameter is 4 mm, and the maximum is 30 mm.

Technical Specifications:

Material: SUS304

Dimensions (L/W/H mm): 910×560×1090

Maximum Production Capacity (t/h): 1

Power (kW): 5.5

Power Supply (V/Hz): 380/50

Cutter Disc Diameter (mm): 120

Cutter Disc Hole Diameter (mm): 4–30

Auger (Qty): 1

Total Machine Weight (kg): ≈280
