Features:

Suitable for slicing fresh or deep-frozen (-4°C) fresh meats, ribs, cheese, and frozen foods;

Feeding and Discharging:

1. Conveyor system that pushes products into the cutting area using grippers

2. Cutting area equipped with rotating blades

3. Discharging system or automatic discharge via conveyor belt 4. Adjust cutting specifications by setting relevant parameters via the display screen:

Products are sliced into different thicknesses ranging from 1 to 32 mm via CNC adjustment based on the forward feeding speed of the grippers and the cutting speed,

and can be automatically portioned; Cleaning: The conveyor belt assembly can be quickly disassembled; except for the display screen, the entire machine can be directly rinsed with a water gun.

Technical Specifications:

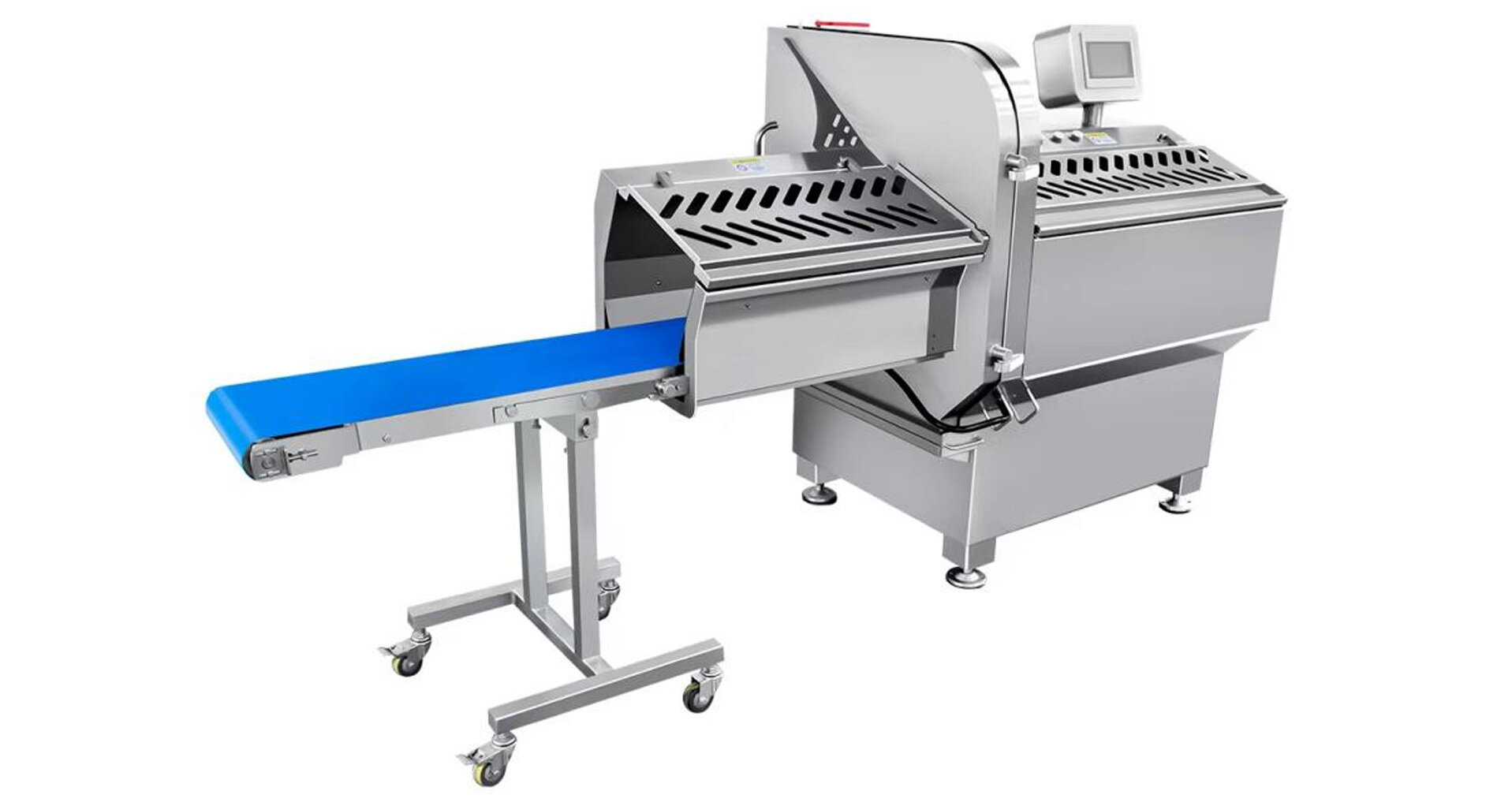

Model: TY-25H Slanted Hopper

Power: 4.84 kW

Voltage: 380V 50Hz (voltage fluctuation within ±5%)

Slice Thickness: 1–32 mm, digitally adjustable

Hopper Dimensions: 700 x 250 x 180 mm

Portioning Function: Number of slices per portion digitally adjustable

Minimum Material Temperature: -4°C

Total Machine Weight: 500 kg

Machine Dimensions: 2570 x 935 x 1345 mm
