Main Applications:

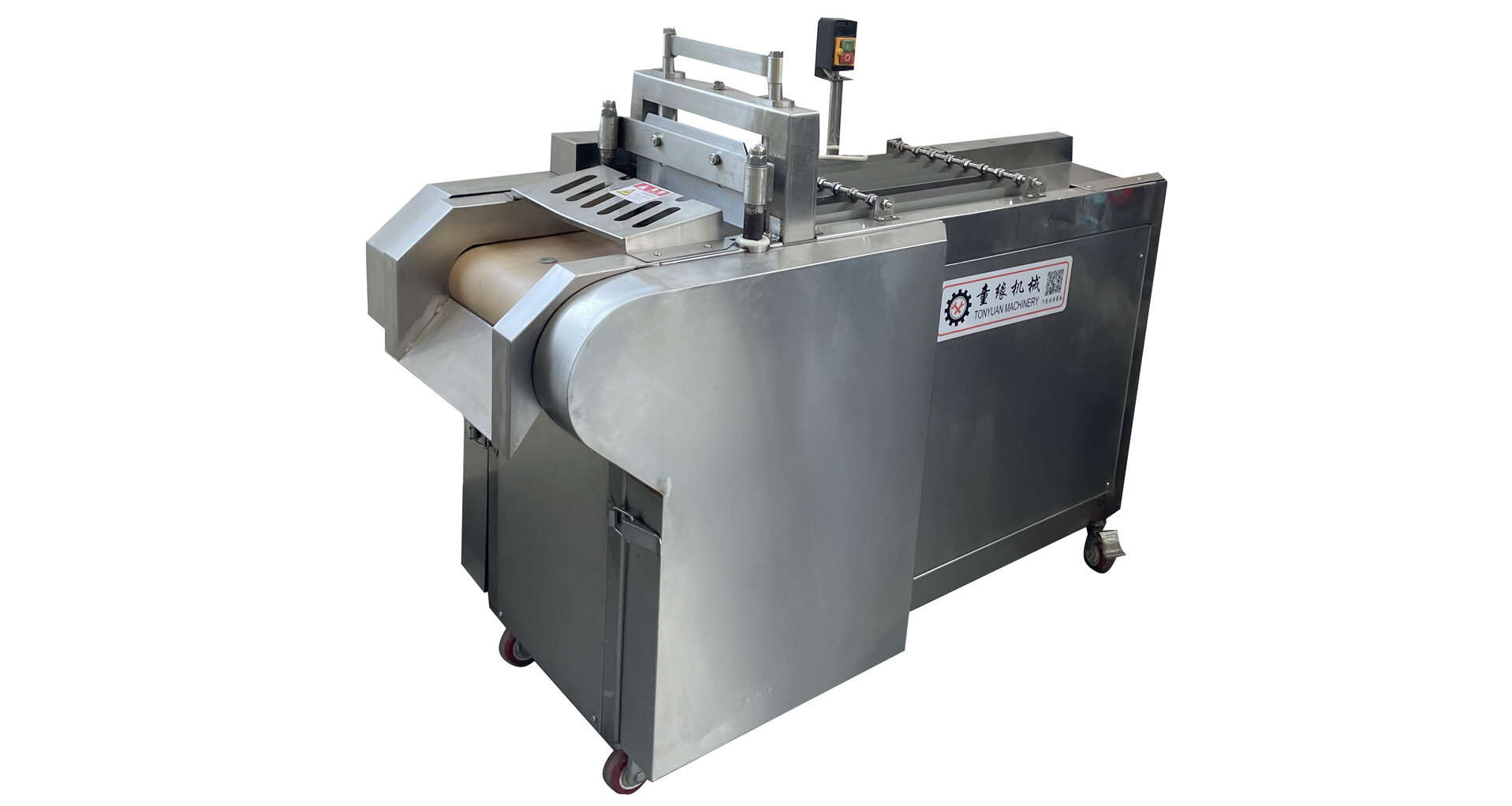

This machine is primarily designed for slicing and dicing long, slender vegetables (such as chili peppers, green beans, and dried fruits). By changing the blades, it can also be used to dice various dried fruits into small pieces.

Key Features:

Equipped with a specially designed rubber conveyor belt, it operates continuously and automatically adjusts to the feed rate, making it suitable for producing granules, fine slices, and segments. The cutting loss rate is ≤3%, and the cuts are smooth with excellent slice quality;

The feeding mechanism uses counterweights for adaptive pressure, resulting in higher slicing accuracy and operational safety compared to standard vegetable and fruit cutters. The machine prevents material leakage entirely and is easy to clean, operate, and maintain. It does not contaminate the product and complies with GMP requirements.

Working Principle:

The specially designed conveyor belt and adaptive clamping mechanism move the material in continuous, uniform increments at a distance set by the eccentric mechanism. The linear cutting mechanism directly cuts the material on the conveyor belt, with the cutting thickness adjustable via eccentric blocks.

Distinctive Features:

The feeding mechanism employs adaptive pressure rollers for safe and convenient operation; the feed gears are mounted at the ends of the feed roller shafts to prevent product contamination during operation; the gantry frame is equipped with a protective cover to ensure operational safety.

Dimensions: 1300 × 680 × 1250 mm

Production Capacity: 100–500 kg/h

Cutting Length: 1–30 mm

Total Power: 1.5 kW

Cutter Gate Width: 295 mm

Total Weight: 200 kg
