Construction Materials:

The main body is constructed from high-quality stainless steel plate, while the frame is made of high-quality stainless steel square tubing, ensuring safety and hygiene.

The material is fed and discharged continuously, facilitating equipment integration and continuous production.

Operating Principle:

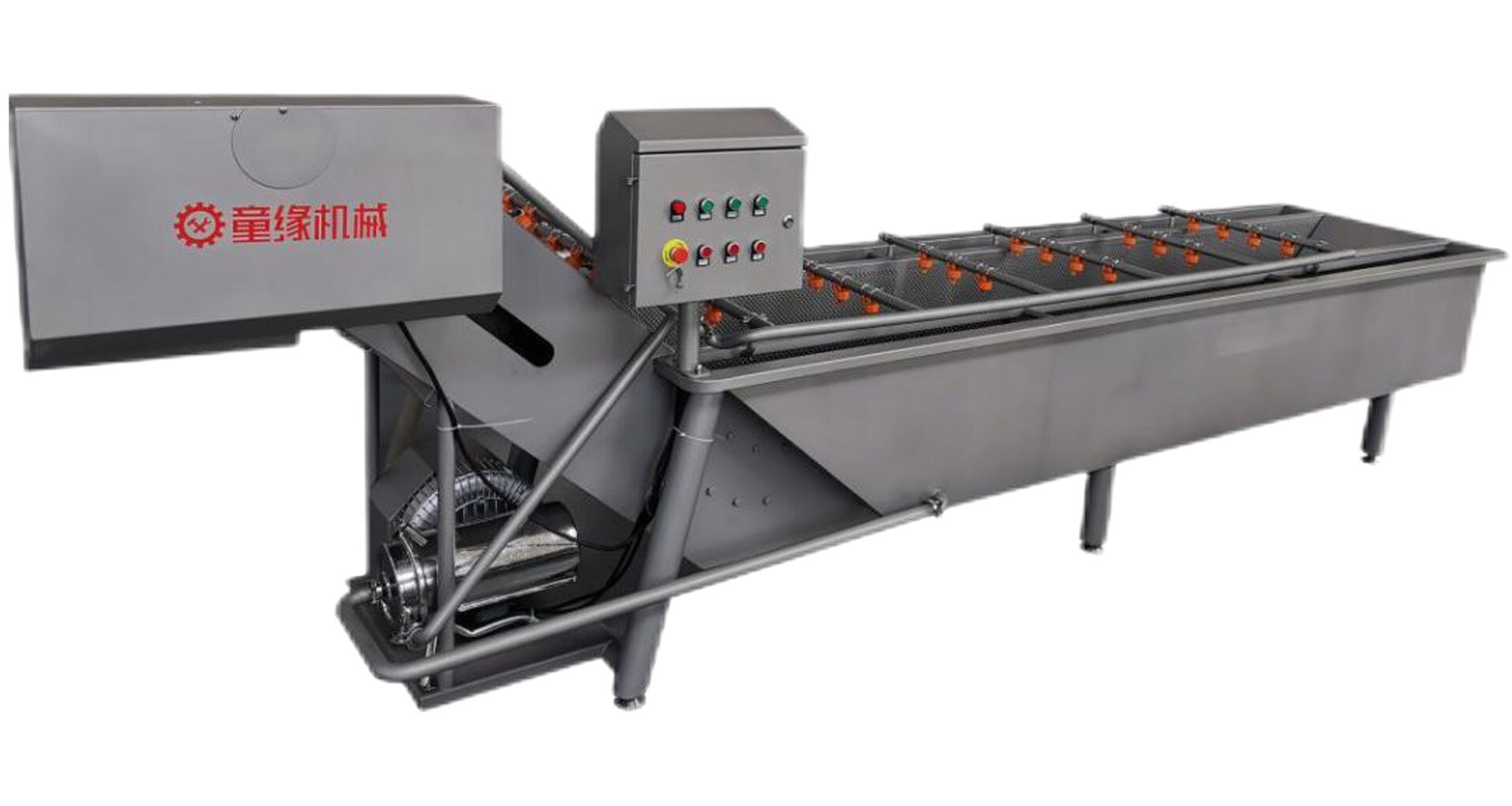

The equipment is equipped with a bubble generator that causes the material to tumble, continuously agitating it to accelerate the separation of material from impurities.

The base of the equipment’s support frame is fitted with adjustable feet to accommodate uneven floors.

The cleaning process removes surface soil, dust, and impurities from the material, facilitating subsequent processing.

Applications:

Suitable for root vegetables, leafy greens, fruits, and bulbous vegetables.

Technical Specifications:

Overall Dimensions: 5000 × 1220 × 1350 mm

Tank Dimensions: 3000 × 1220 × 550 mm (Standard Model)

Conveyor Belt Width: 800 mm

Inlet/Outlet Height: 800 mm (Standard Model)

Chain Pitch: 38.1 mm

Scraper Spacing: 300 mm   Scraper Height: 80 mm

Voltage: 380 V, Three-phase, 50 Hz
