Overview:

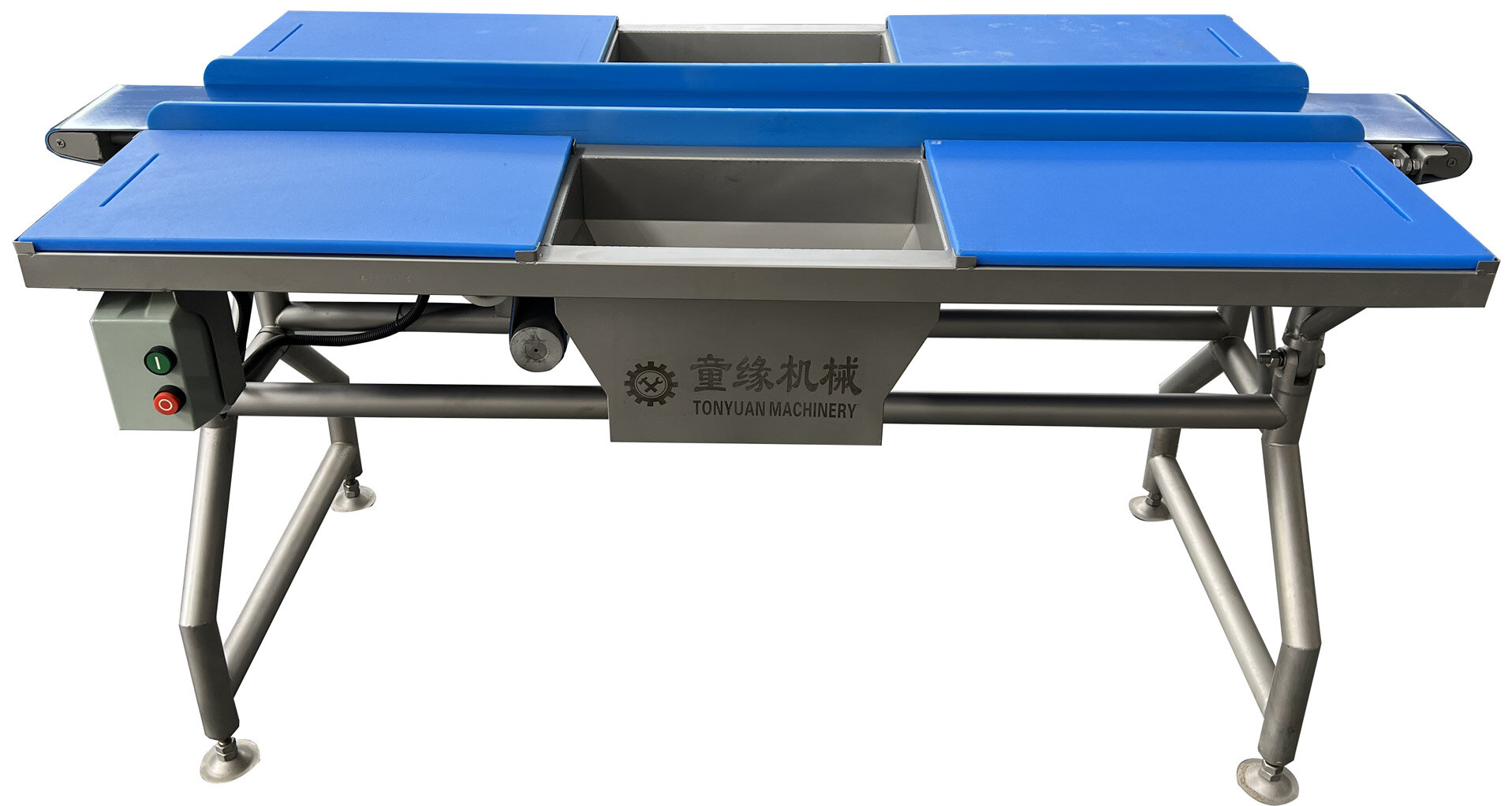

This machine features a sliding connecting rod for quick belt tensioning and removal, a single-sided hinged frame structure, and a U-shaped drive mechanism, enabling rapid installation and removal of the conveyor belt.

Features:

With a rational design and user-friendly operation, this machine is constructed entirely from SUS304 stainless steel, except for the motor and electrical components. The conveyor belt is made of high-quality flat PVC material, and the equipment surface is finished with a matte sandblasted stainless steel process to meet food production hygiene standards.

Suitable for sorting and trimming food raw materials.

Technical Specifications:

Model: TY-4

Feed Inlet Height: 880 mm

Overall Dimensions: 1670 x 970 x 1000 mm

Discharge Outlet Height: 800 mm

Total Power: 0.18 kW

Effective Conveyor Belt Width: 160 mm

Customers can customize the machine with four, six, eight, or even more workstations based on their actual needs.
