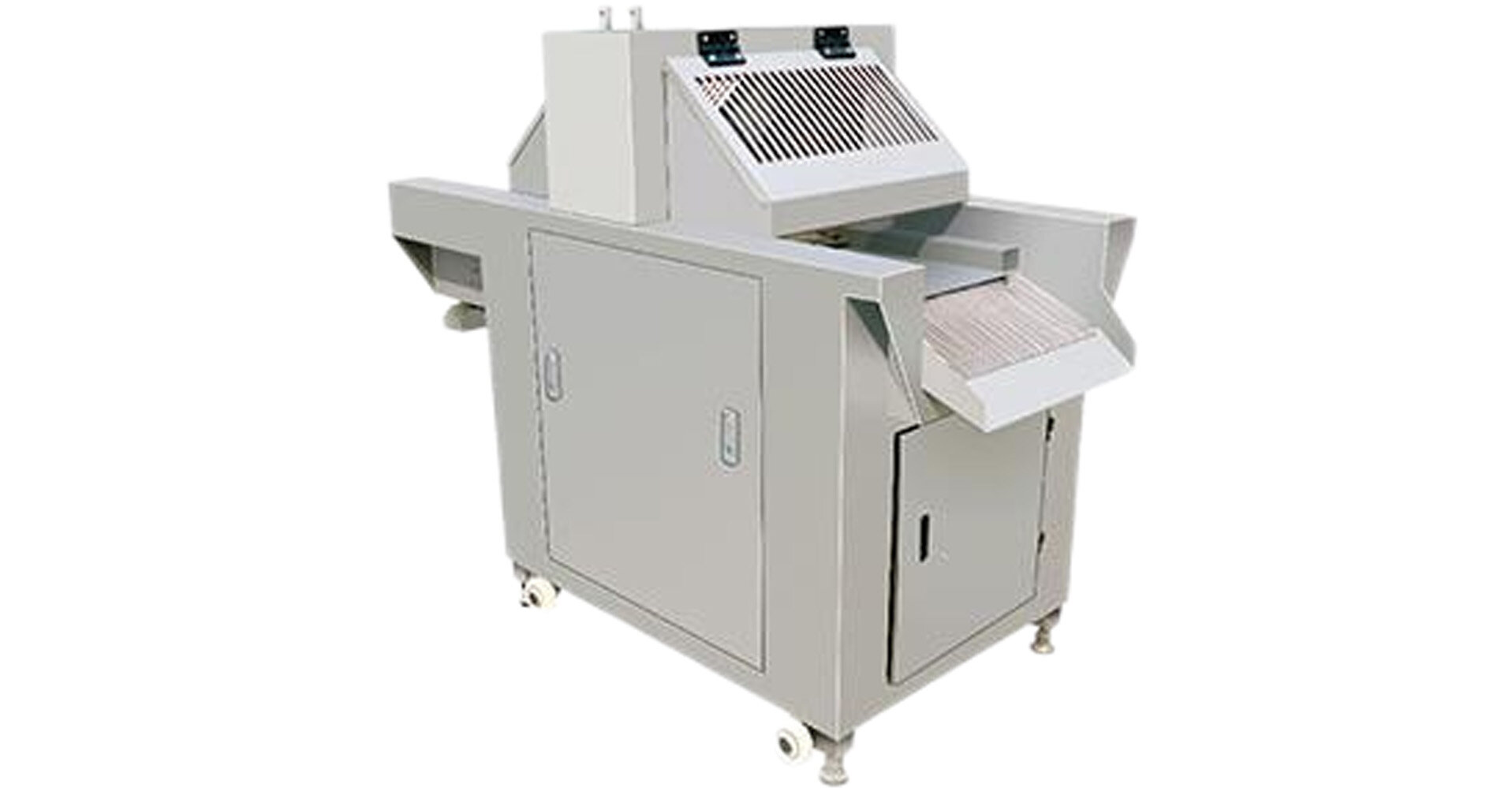

Overview:

The TY-Needle Tenderizer is currently the largest, highest-output, and most advanced automated meat tenderizing machine available in China.

This machine employs the most advanced toothed stepper technology currently available internationally, making it the meat tenderizing machine that delivers the best results, is the simplest to operate, and offers superior performance.

The tenderizing principle of this machine is derived from and refined based on relevant European and American design concepts. It utilizes high-density, specially designed fine blades with an oblique cut to perform deep, instantaneous fiber cuts on the beef being processed,

thereby disrupting the muscle fiber structure from multiple angles to achieve optimal tenderness without altering the beef’s shape.

This tenderizer is suitable for industrial and various types of meat processing operations, steak processing plants, and meat refinement production processes.

Technical Specifications:

Model: TY-544

Number of blades: 976

Up-and-down frequency: 87 times/min

Conveyor belt width: 46mm

Motor Power: 3 kW

Output: 3,500–4,500 kg/h

Vertical Stroke: 200 mm

Conveyor Belt Stroke (Amplitude): 50 mm–100 mm (adjustable)

Conveyor Belt Length: 1,400 mm

Dimensions: 1,980 x 850 x 1,550 mm

Weight: 400 kg
